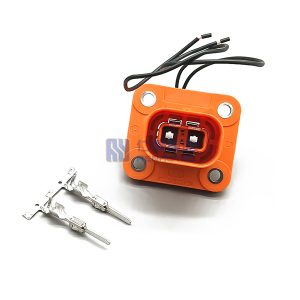

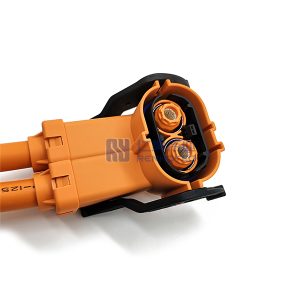

HVIL Series Connector

The HVIL (High Voltage Interlock Loop) Series Connector is a specialized electrical connector designed primarily for use in high voltage systems found in electric vehicles (EVs), hybrid vehicles, and other high-power applications where safety and reliability are paramount. This advanced connector incorporates an integrated safety feature known as the High Voltage Interlock Loop, which ensures that high voltage circuits are only activated when all connections are properly secured and grounded, thereby preventing accidental exposure to high voltage, enhancing user safety, and reducing the risk of electrical fires or system damage.

Key Features of the HVIL Series Connector:

1. Safety Mechanism:

The core feature of the HVIL connector is its interlock loop functionality. This system uses a low voltage signal path that runs parallel to the high voltage circuitry. If any part of the high voltage system is disconnected, open, or improperly installed, the control unit detects this interruption in the loop signal, immediately disabling the high voltage supply, ensuring safe maintenance and operation.

2. Robust Design:

Built with high-quality materials resistant to heat, vibration, and mechanical stress, these connectors are designed to withstand harsh automotive environments and maintain a reliable connection throughout the lifespan of the vehicle.

3. Ease of Use and Installation:

Despite their complex safety features, HVIL connectors are designed for straightforward installation and user-friendly operation. They often incorporate quick-connect/disconnect mechanisms and clear visual indicators to confirm proper connection and interlock status.
