HVIL Connector & Cable

Renhotec HVIL Connectors for EV applications feature up to 1500V, up to 500A operating current, and a -40℃ to +125℃ operating temperature range. HVIL connectors provide contact sizes from 2.8mm to 14mm and IP67, IP6K9K sealing. The series includes secondary locking and external or internal HVIL. Applications include electrical vehicle (EV) batteries, inverters, junction boxes, and power distribution boxes.

Renhotec HVIL Cable, a specialized cable used in electric and hybrid vehicles, connects the high voltage battery to the powertrain. The cable is engineered to withstand harsh environments, resist vibration and shock, and meet safety standards for high voltage applications.

Get A Free Quote


Features

  • Straight and right angle
  • Up to 1500V
  • Up to 500A operating current
  • -40°C to + 125°C operating temperature
  • Range 2.8mm to 14mm contact size
  • Touch Proof (IP2x)
  • lP67 / IP6K9K sealing
  • 2.5mm² to 150mm² wire gauge
  • Compatible with Amphenol and TE Connectivity
  • lncludes secondary locking and HVIL

Applications

  • Electrical vehicle (EV) batteries
  • Inverters
  • Junction boxes
  • Power distribution boxes

Comprehensive Range of HVIL Connectors

Renhotec HVIL Series Connector

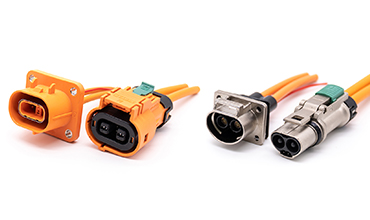

16-200A Plastic HVIL Connectors

Rated Current：

16A 23A 40A 63A 150A 200A others

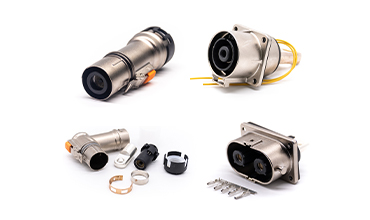

35-500A Metal HVIL Connectors

Rated Current：

HVIL Cable Assembly

HVIL connector

23-50A HVIL Cable

Wire Guage：

4mm² 6mm² 10mm² others

125-300A HVIL Cable

Wire Guage：

25mm² 50mm² 95mm² others

400-500A HVIL Cable

Wire Guage：

120mm² 150mm² others

Our Certificate

CE Compliance
ISO 9001 Cerfiticated
IATF-16949

Related Posts

How to Assemble HVIL Connectors - Renhotec
How to Assemble HVIL Connectors – 12mm Right Angle Plug of Single Core

Introduction In today’s high-voltage applications, proper connector installation is crucial for system safety and reliability. [...]

Read more
20
Feb
Hybrid Connector
What is a Hybrid Connector?

Hybrid Connector is a multifunctional electronic connector that integrates power, signal, and data transmission. Through innovative [...]

Read more
15
Feb

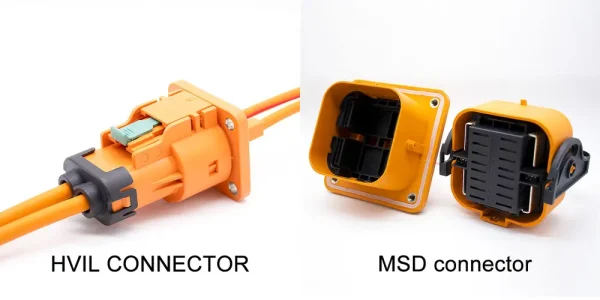

MSD Connector
Exploring MSD Connectors: Versatility Unleashed

What is the MSD connector？ The full English name of MSD: Manual Service Disconnect; the [...]

Read more
15
Nov
How to Assemble a High Voltage Interlock Connector
How to Assemble a High Voltage Interlock Connector

As far as the entire high-voltage interconnection system is concerned, in order to ensure the [...]

1 Comment

Read more
04
Aug
Applications of Contacts in High-Voltage Connectors for New Energy Vehicles

Connectors are used in every automobile, the device uses electrical and optical signals to connect, [...]

Read more
28
Jun
high voltage connector
High-voltage Connectors: Classification and Development

High-voltage connectors can be distinguished in a variety of ways, and will vary from industry [...]

Read more
22
May

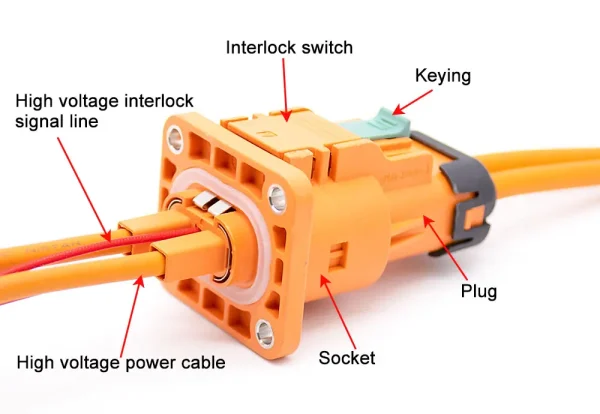

High Voltage Interlock Loop Connector
