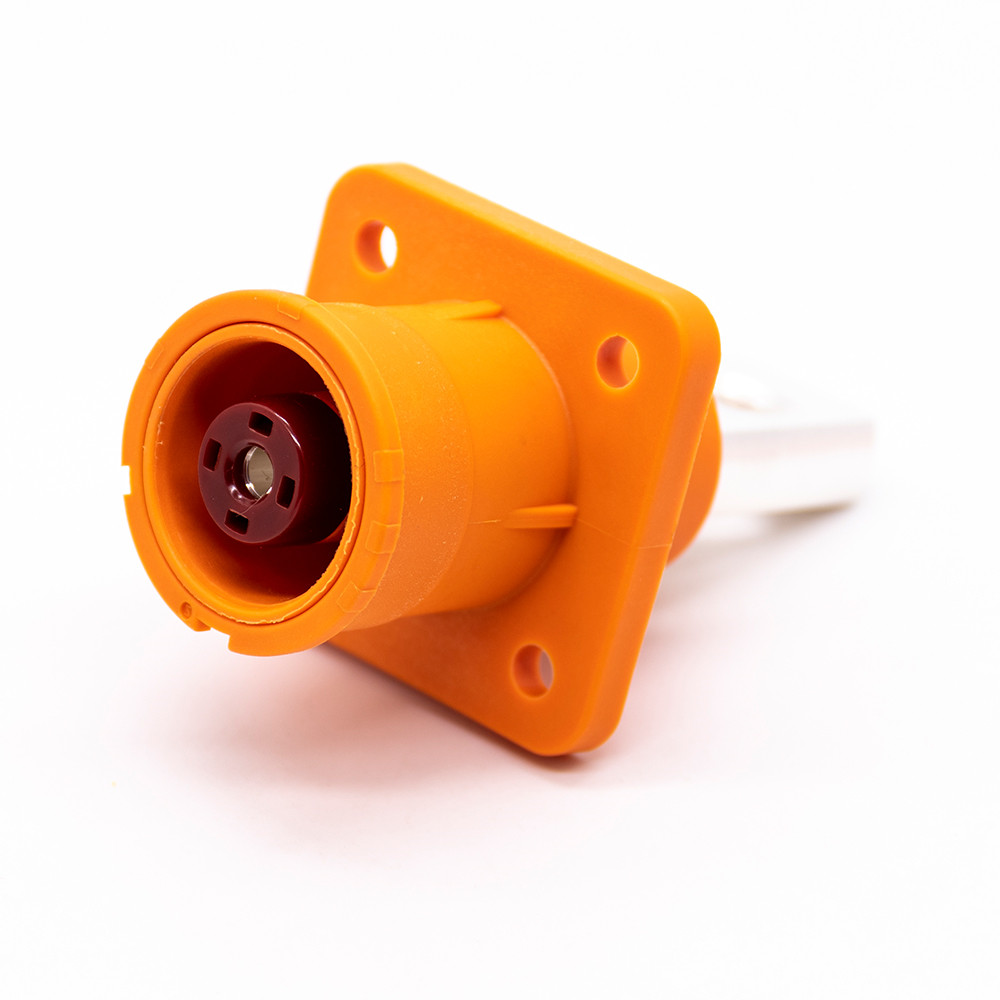

400A-480A Connectors for Energy Storage System

14mm type energy storage connector, mainly including 400A, 480A.

Main Advantage

  • With secondary locking function, it is safer and more reliable
  • Supports first crimping and then threading, reducing maintenance costs
  • Key position error proofing, 360° blind mating and rotation
  • Can serve as alternatives to Amphenol SurLok connectors


Introduction of energy storage connector

The Renhotec energy storage connector comes in 400A, and 480A series, and is available with a 14mm type. Its features include key position error prevention, positive and negative color error prevention, and 360°rotation.

It is compatible with high-voltage cables of 120 mm² and 150 mm², and is ideal for connecting energy storage cabinets, energy storage stations, mobile energy storage vehicles, photovoltaic power stations, and other components that require high-voltage connections.

Features of energy storage connector

  • With its secondary locking function, the product ensures enhanced safety and reliability.

  • The terminal can be crimped prior to assembling the product. In the event of any damage to the power terminal, the plug can be conveniently replaced without having to replace the entire cable.

  • This product also features a key positioning error prevention function, while meeting the required standard of 360° blind insertion. Once inserted, it facilitates a 360° rotation, thus minimizing the chances of incorrect usage.

  • Ensuring ease of identification, the product comes with color error proofing, specifically designed to identify battery poles with ease.

  • This product comes with an optional protection grade of IP67.

Installation size of energy storage connector

400a-480a-connectors-for-energy-storage-sysytem-1
400a-480a-connectors-for-energy-storage-sysytem-2

Parameters of 400A-4800A Energy Storage Connector

Connector Type Plug Socket
Orientation Straight Right Angle
Contact Termination Busbar Crimp
Mounting Type Cable Mount Panel Mount
Shell Material Nylon
Contact Material T2
Contact Finish Silver Plating
Rated Current 400A 480A
Rated Voltage 1500V
Terminal Size 14mm
Color Red Black Orange
Flammability UL94 V-0
Wire Range 120mm² 150mm²
Operating Temperature -40℃ ~ +125℃
Ingress Protection IP54 IP67
