60A-125A Energy Storage Connector

60A-125A Energy Storage Connector for ESS

6mm type energy storage connector, mainly including 60A, 70A, 100A, 120A, 125A.

Main Advantage

With secondary locking function, it is safer and more reliable;
Supports first crimping and then threading, reducing maintenance costs;
Key position error proofing, 360° blind mating and rotation

Max 1500V

Plug and Play

Max IP67

More Information

Get Samples

Introduction

Products

Parameters

Recommend

Introduction of energy storage connector

6mm type energy storage connector, mainly including 60A, 70A, 100A, 120A, 125A series. It has functions such as key position error prevention, positive and negative color error prevention, 360° rotation, etc., corresponding to 10 mm², 16 mm², and 25 mm² high-voltage cables.

It is suitable for high-voltage connection between energy storage cabinets, energy storage stations, mobile energy storage vehicles, photovoltaic power stations and other components.

Features of energy storage connector

Optional protection grade IP67.
Color error-proof, easy-to-identify battery poles.
It has a secondary locking function, which is safer and more reliable.
If the power terminal is damaged, the plug can be replaced separately without replacing the cable.
It has the function of key position error prevention and meets the requirements of 360° blind insertion.
After insertion, it can realize 360° rotation to avoid user misoperation to the greatest extent.

Installation size of energy storage connector

Products

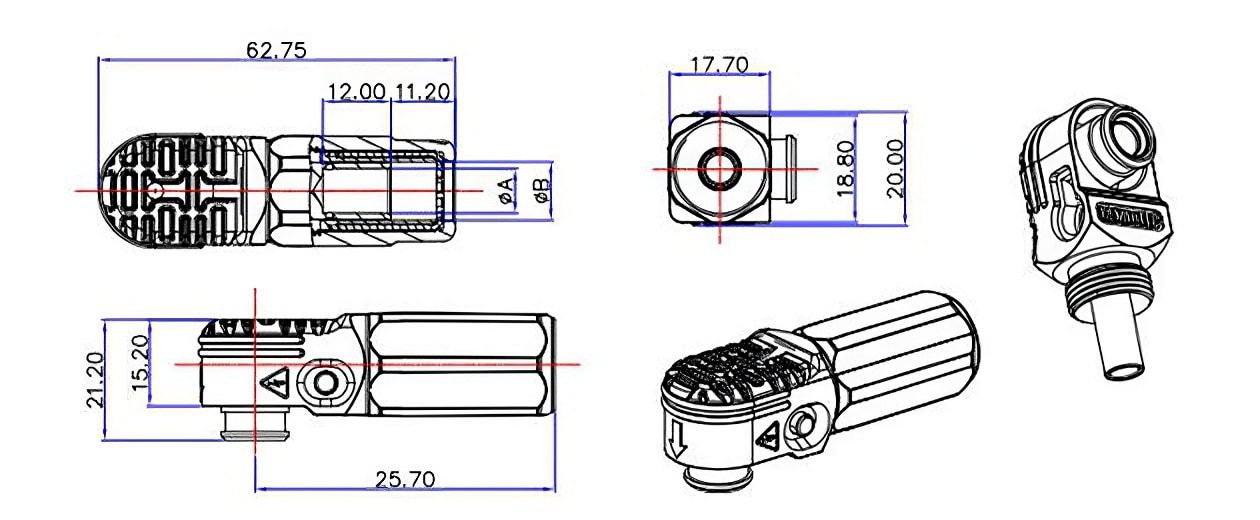

Plug

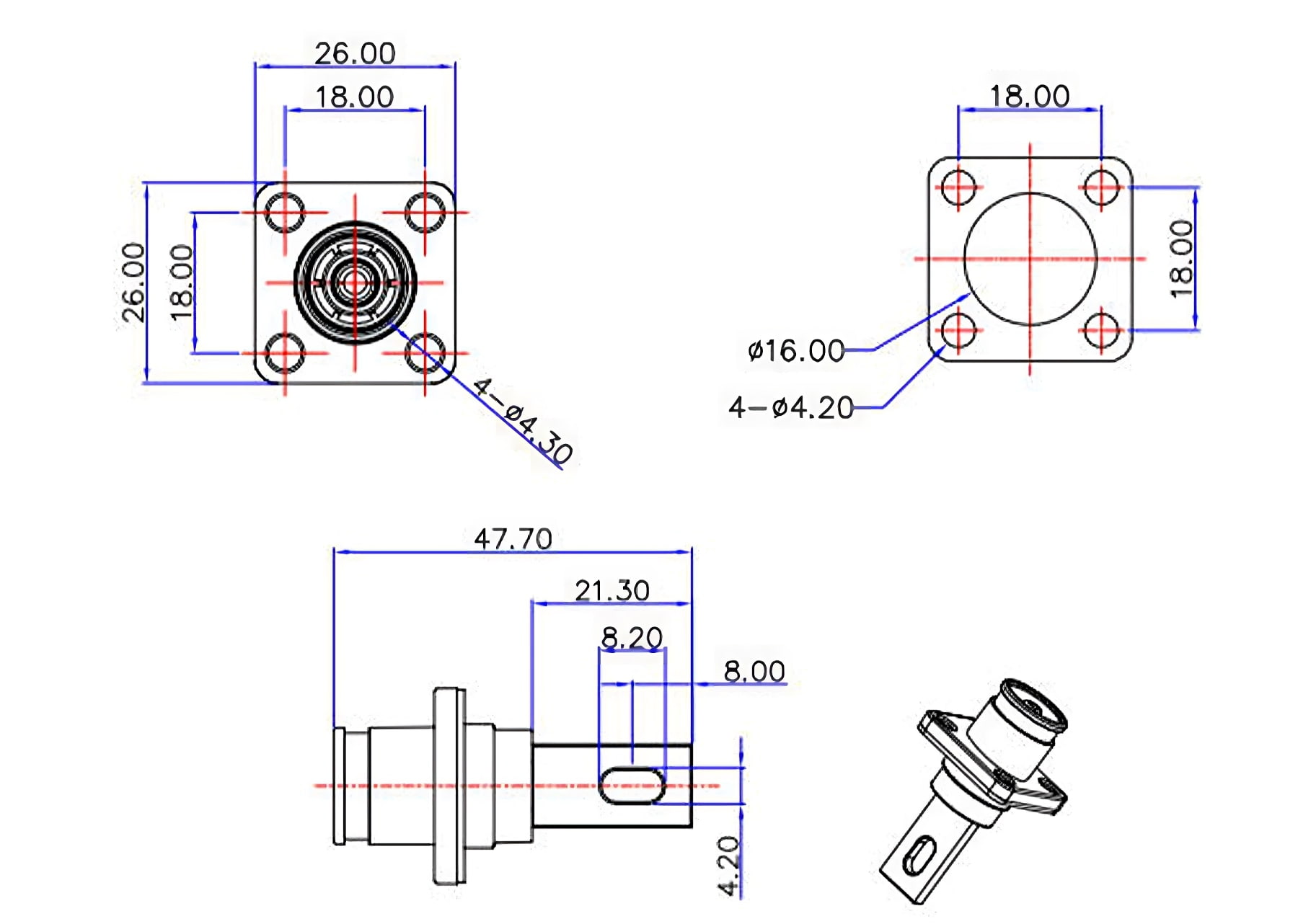

Socket

Parameters of 60A-125A Energy Storage Connector

Connector Type	Plug			Socket
Orientation	Straight			Right Angle
Contact Termination	Busbar		Crimp	Inner Screw	Outer Screw
Mounting Type	Cable Mount			Panel Mount
Shell Material	Nylon
Contact Material	T2
Contact Finish	Silver Plating
Rated Current	60A	70A	100A	120A	125A
Rated Voltage	600V			1000V
Terminal Size	6mm
Color	Red		Black	Orange
Flammability	UL94 V-0
Wire Range	10mm²		16mm²	25mm²
Operating Temperature	-40℃ ~ +125℃
Ingress Protection	IP54			IP67
