Drawer connectors are modular, pluggable power connectors designed for fast, reliable connections in high-power systems. They are used in many industries, such as energy storage, industrial automation, medical equipment, and telecom. Their flexible designs and easy maintenance meet the increasing power needs. In this article, we explain what power drawer connectors are, their primary applications, and the key benefits of choosing Renhotec’s Drawer Series for advanced power connectivity solutions.

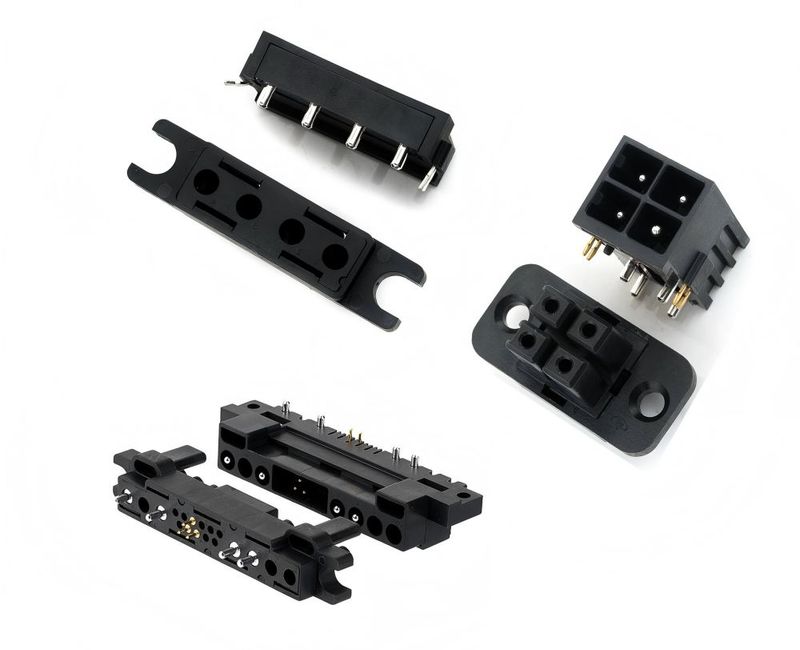

What Are Power Drawer Connectors?
Drawer connectors (or power modular connectors) are modular, pluggable electrical interconnection devices designed for quick mating/unmating via a sliding mechanism similar to a drawer. They consist of
- Plug (Male Connector)—Fixed to a module or device.
- Receptacle (Female Connector)—Mounted on a backplane or chassis.
- Guidance System (Rails/Slots)—Ensures blind-mating capability with positional tolerance compensation.
- Locking Mechanism (Latches/Screws)—Prevents accidental disconnection.
Key Features:
- Blind-Mating Design–Allows ±0.2–0.5mm misalignment tolerance.
- Floating Contacts–Compensates for axial/radial misalignment.
- Modular Architecture–Supports hybrid power/signal/fiber optic transmission.

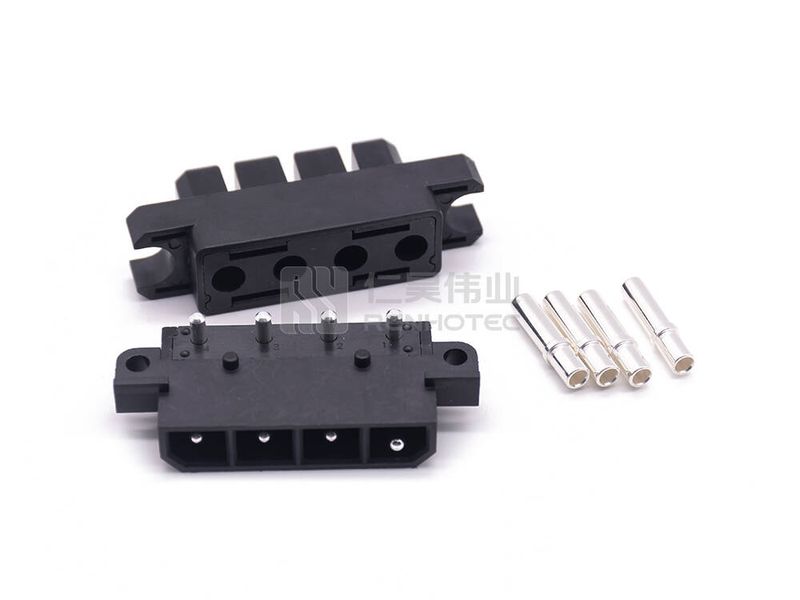

Advantages of Renhotec Drawer Series Connectors
After exploring the definition and structure of drawer connectors, let’s now examine their core advantages.
| Advantage | Technical Explanation |
| Tool-Free Hot-Swapping | 80% faster installation vs. screw terminals. |
| High Reliability | Vibration-resistant (e.g., IEC 61373 for rail applications). |
| Modular Maintenance | Individual module replacement reduces downtime. |
| High-Density Layout | Saves 30–50% space vs. traditional connectors. |
| Polarization Design | Key-coding/color-coding prevents misalignment. |
| Long Service Life | Gold-plated contacts (≥5,000 mating cycles per IEC 60512). |
Engineers often face difficulties sourcing the ideal combination of housing and contact types for power applications. Renhotec’s power drawer connectors solve this with a modular tooling platform that allows each housing to accommodate up to 10 modules—each supporting five different contact types.
This adaptability ensures:
- A precise fit tailored to your power system
- No compromises on housing compatibility
- Elimination of tooling costs and lead times for new configurations
This level of customization is especially valuable in systems where layout constraints, current ratings, and signal integration must be balanced within a compact footprint.
Applications of Power Drawer Connectors
Given the many advantages of high-power drawer connectors, including modularity, high current handling, and robust IP-rated protection, they are increasingly adopted across various mission-critical industries. Below are the key application sectors:
Industrial Automation
- PLC control cabinets (modular I/O expansion).
- Robotic tool changers (e.g., welding end-effectors).
Energy Storage & Renewables
- Battery pack interconnections (200A+ current rating).
- PV inverters (maintenance-friendly modular design).
Rail Transportation
- Train control systems (compliant with EN 50155 shock/vibration standards).
- Charging interfaces (IP67-rated for outdoor use).
Medical Equipment
- CT/MRI systems (spark-free mating for safety).
- Surgical robots (high-speed signal integrity).
Data Centers & Telecom
- Server racks (hot-swappable PCIe/NVMe backplanes).
- 5G base stations (IP65/IP68 environmental protection).
Power Drawer Connector Selection Guide
When selecting the right power drawer connector for your application, it’s crucial to consider various technical specifications. Below are the key factors to help guide your decision:
- Current/Voltage Rating (e.g., 10A/250V AC or 200A/1000V DC).
- Mating Cycles (Industrial grade: ≥5,000 cycles).
- IP Rating (IP65/IP67 for harsh environments).
- Operating Temperature (-40°C to +125°C for automotive/industrial).
- Contact Material (Au-plated for low resistance, Ag-plated for high current).
Market Trends in Power Drawer Connectors
As industries push for better performance, power drawer connectors are quickly evolving to meet new technological and application needs. Key trends include:
- High-Voltage DC: Up to 1,500V for energy storage systems.
- Smart Drawer Series: Integrated sensors for temperature/current monitoring.
- Lightweight Builds: Titanium/composite housings for aerospace.
- High-Speed Data: Supporting 112Gbps PAM4 signaling.
Conclusion
Drawer connectors are quickly replacing traditional screw and weld connections in critical industries due to their modularity, reliability, and ease of maintenance. With flexible configurations and high-performance capabilities, Renhotec’s RHT Drawer Connector Series is widely adopted in industrial and energy storage systems (ESS). For detailed technical specifications and to explore the range, visit our product page: Renhotec Drawer Connectors.
