Micro-D (MIL-DTL-83513) Selection Guide: Engineering Equivalents for the Glenair MWDM Series

In the global procurement of high-density interconnect devices, the main bottlenecks, in addition to core parameters, lie in the predictability of delivery times.

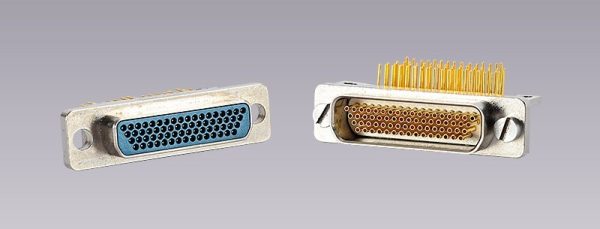

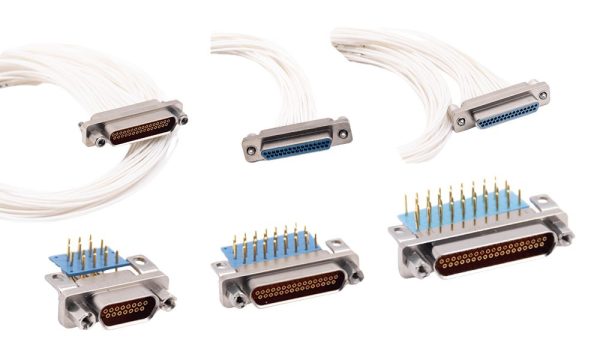

While Tier-1 brands like Glenair offer high-quality MWDM series, lead times often stretch to 16–24 weeks. The J30J series (drop-in replacement of MIL-DTL-83513) is designed to meet the same dimensional and electrical standards, providing a high-fidelity equivalent that offers a streamlined procurement path without compromising technical integrity.

1. Mechanical Compatibility: The Foundation of Drop-in Replacement

A successful “drop-in” replacement requires high-fidelity mechanical compatibility. The J30J series is engineered in accordance with the GJB2446 and MIL-DTL-83513 standards, ensuring that mating interfaces and PCB footprints are intermateable with international alternatives.

Critical Mechanical Parameters:

• Contact Pitch: 1.27 mm (0.050″) center-to-center spacing, optimizing high-density signal transmission.
• Dual Grid Options: Supports both standard 2.54 x 2.54 mm and the MIL-Spec 1.27 x 2.54 mm (indicated by the -J suffix).
• Mounting Hardware: Includes various Locking Subassemblies for secure panel or board integration, utilizing standard M2 hardware.

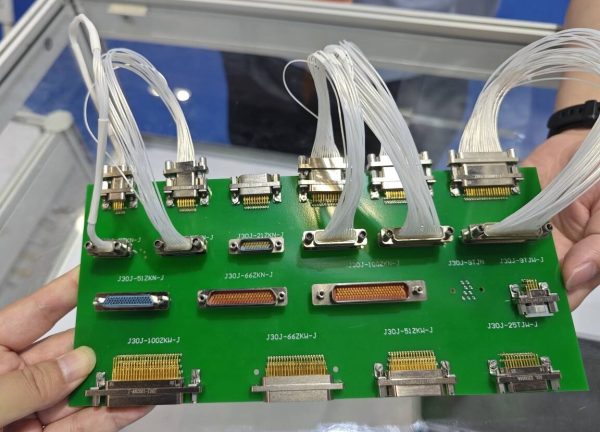

By maintaining these specific tolerances, engineers can integrate J30J components into existing designs, aiming for a seamless drop-in replacement without modifying PCB artwork.

2. Cross-Reference Matrix: Glenair MWDM to J30J Mapping

Navigating Micro-D part numbers requires precision. Below is a verified cross-reference matrix for high-demand configurations, utilizing correct terminal type codes.

Browse J30J series products.

3. Technical Deep-Dive: Electrical and Material Integrity

The J30J series offers robust electrical performance suitable for mission-critical electronic equipment.

A. Core Electrical Specifications:

• Rated Current: 3A
• Contact Resistance: ≤ 10mΩ
• Insulation Resistance: ≥ 5000MΩ
• Dielectric Strength: 800V
• Operating Temperature: -55°C to +125°C

B. Durability and Finish

• Mechanical Endurance: Tested for 500 mating cycles.
• Shell Finishing: Options include Nickel plating or Cadmium (Suffix G).
• Compliance Note: Ensure your project adheres to RoHS requirements when selecting shell finishes.

4. Technical Validation via 2D Schematics

In complex engineering projects, the 2D technical drawing remains the primary document for tolerance verification and quality control.

PCB Footprint Precision

Accurate PCB routing is vital for 51-pin or 100-pin connectors. Our PCB Hole Dimensions guide provides precise data for both 2.54mm and 1.27mm grids, minimizing the risk of expensive PCB re-spins.

Panel Mount Accuracy

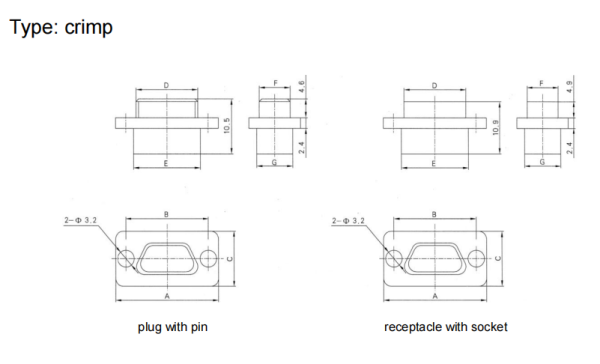

Our selection catalog provides specific cutout dimensions and Size after mating data (Dim A through G), ensuring a vibration-resistant fit for your enclosure.

5. Mitigating Selection Friction: Custom Mapping Services

While our online portal features the flagship SKUs, our internal catalog covers the full range from 9 to 100 pins.

To assist in your design cycle, we offer a Direct Mapping Service:

1. Submit Your P/N: Provide your current Glenair or MIL-Spec part number.
2. Expert Validation: Our engineering team analyzes the pinout, mounting style, and terminal type (Crimp, Solder, or PCB).
3. Technical Data Package: Within 24 hours, we aim to provide a matching J30J part number and the relevant 2D technical schematics.

Securing Your 2026 Supply Chain

Transitioning to the J30J series is a strategic move for organizations focused on agility and lead-time reduction. By utilizing our verified 2D technical data and targeted cross-reference tools, you can maintain engineering standards while significantly reducing procurement friction.

Download our Full J30J (Micro-D) Selection Catalog (PDF) for comprehensive drawings, PCB footprints, and electrical specifications.
