MIL-DTL-83513 Micro-D connectors are widely used in aerospace, military, and high-end industrial equipment due to their compactness, lightness, and reliability. However, many engineers and procurement professionals often encounter the following challenges:
Long lead times from original equipment manufacturers impact project schedules; Expensive prices put pressure on procurement budgets; Complex models make selection difficult.
To address these challenges, the J30J series connectors are becoming a preferred alternative for a growing number of buyers. This article explains why the J30J is a viable alternative to MIL-DTL-83513 connectors and how to quickly select one.
1. Analysis of MIL-DTL-83513 Standard
MIL-DTL-83513 core requirements (environmental resistance/electrical performance/mechanical strength)
The MIL-DTL-83513 specification defines the performance and quality requirements for Micro-D connectors used in aerospace, defense, and other demanding environments. This military standard covers critical aspects such as:
Dimensions: Microminiature, rectangular.
Contact density: 0.050 in. (1.27 mm) contact pitch
Material and plating: Shells are typically nickel-plated, while contacts are gold-plated
Environmental resistance: Vibration, shock, and temperature cycling.
Electrical performance: Contact resistance, insulation resistance, current rating.
Mechanical strength: Mating cycles, retention force, and shell durability.
Under this standard system, several sub-models have also been derived, such as MIL-DTL-83513/03, MIL-DTL-83513/2, MIL-DTL-83513/3, MIL-DTL-83513/4, and MIL-DTL-83513/5, which are respectively aimed at different connector layouts and backshell structures.

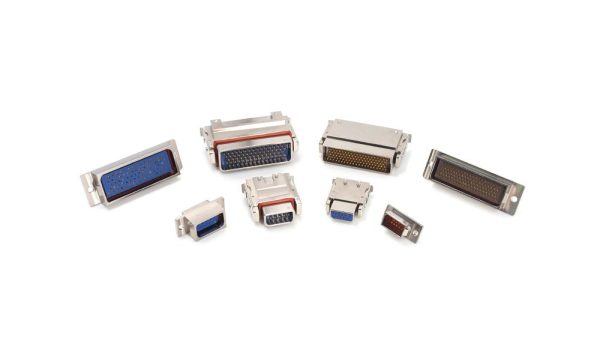

J30J Series and GJB2 446A Compliance
The J30J connector series is widely adopted in China and internationally as a commercial equivalent to MIL-DTL-83513. Designed in compliance with GJB2446A, which is equivalent to MIL-C-83513, the J30J series provides a reliable and cost-effective alternative.
Part numbers such as J30J-25ZKW, J30J-31ZKW-J, J30J-37ZKW, and J30J-15ZKW are frequently selected for projects requiring micro-D connectors with proven mechanical and electrical reliability.
2. Interface Compatibility and Pinout Comparison
A critical consideration when replacing MIL-DTL-83513 connectors is interface compatibility.
Needle position layout

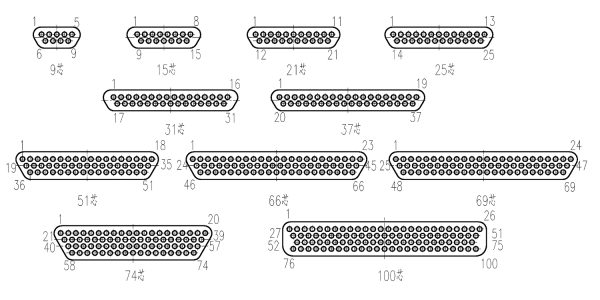

J30J connectors pinout：

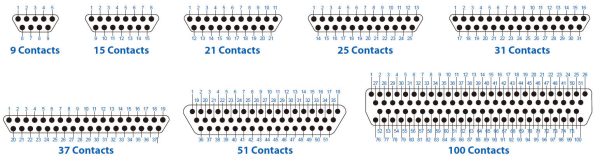

MIL-DTL-83513 connectors pinout：
Pin definitions in J30J closely follow the MIL-DTL-83513 micro-D connectors standard.
Dimensional interchangeability
ensures that J30J connectors can be mated with existing 83513 hardware.
This makes J30J series a practical choice for system upgrades where backward compatibility is required.
3. J30J Alternative
J30J vs MIL-DTL-83513: Performance Comparison
| J30J and MIL-DTL-83513 Specifications Comparison | ||||
|---|---|---|---|---|
| J30J connector | MIL-DTL-83513 connector | |||
| Mating and Unmating Life | 500 cycles | 500 cycles | ||
| Operating Temperature | -55℃~125℃ | -55℃~125℃ | ||
| Salt Spray Test | 96H | 48H | ||
| Layouts | 9, 15, 21, 25, 31, 37, 51, 66, 74, and 100 pin | 9, 15, 21, 25, 31, 37, 51, and 100 pin | ||
| Operating Voltage | 800V | 400 VAC | ||
| Current Rating | 3A | 3A | ||
Comparative testing demonstrates that the J30J connector fully meets or even exceeds the core requirements of the MIL-DTL-83513 specification, giving engineers greater confidence when adopting the J30J as a replacement.
How to select J30J connector
When selecting a connector, engineers should focus on the following:
- Number of pins and their layout (eg, 9, 15, 25, 31, or 37 pins)
- Rated current (3A) and withstand voltage (800V)
- Contact resistance (≤ 10mΩ)
- Insulation resistance (≥ 5000MΩ)
- Insertion and removal life (500 cycles)
- Operating temperature range (-55°C to 125°C)

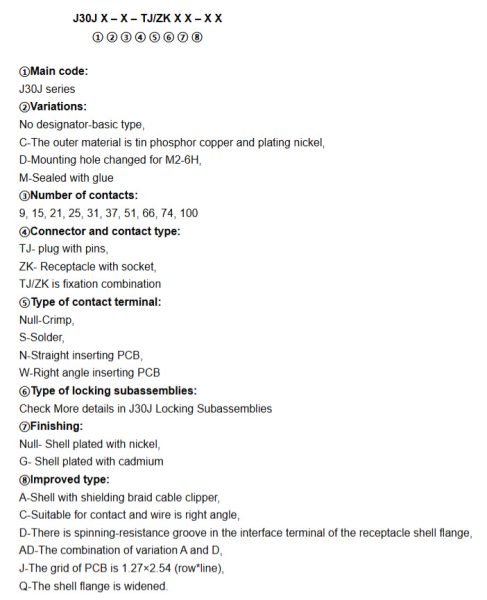

- J30J material number rules and definitions
4. J30J Application Scenarios
The J30J connector is ideal for applications requiring compact, rugged, and high-reliability interconnects, particularly in the aerospace, defense, and industrial markets. Common applications include:
- Navigation systems
- Missiles and ordnance
- Radar
- Unmanned aerial vehicles (UAVs) for avionics
- Space probes
- High-end sensors
- Precision test instruments
- Satellite communication systems
5. How to Order
If you’re looking for a cost-effective alternative to MIL-DTL-83513 connectors, the J30J series is worth considering. To order:
- Download J30J catalog;
- Contact our engineering team [email protected] to confirm compatibility and selection recommendations
- Receive a customized solution.
Whether replacing MIL-DTL-83513 or integrating it into a new project, the J30J series offers the best balance of performance, compatibility, and price. Contact us today to access design resources and get your project off the ground faster, more reliably, and more cost-effectively.
