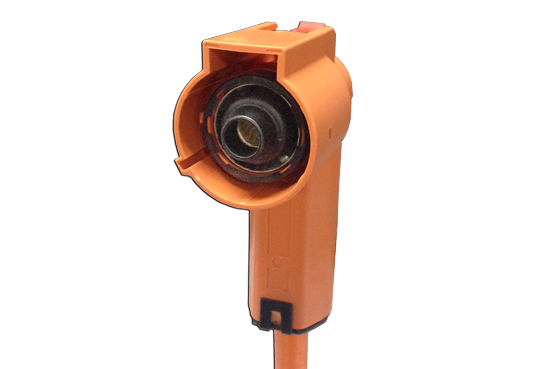

1 Pin High Voltage Interlock Connector Plug 250A 50mm² A Key Right Angle

Part NO.: ST522000-A-50 Category: Tag:
  • Excellent Electrical Insulation.
  • Various Wire Diameter Application.
  • Multi Misplug-proof and Key Position Design.
  • Secondary Buckle.
  • Sealing, IP67,Touch-Proof.
  • Multiple Coding Positions.
Get A Quotation

Product Type

Connector Type

Orientation

Number of Positions

Terminal

8mm

Wire Gauge

50m㎡

Key

A

Mounting Type

Cable Mount

Shell Material

PA66+GF

Features

Waterproof

Connector Type

Orientation

Number of Positions

Terminal

8mm

Wire Gauge

50m㎡

Key

A

Mounting Type

Cable Mount

Shell Material

PA66+GF

Features

Waterproof

Contact Type

Contact Termination

Crimp

Contact Material

Copper Alloy

Contact Finish

Silver Plating

Contact Termination

Crimp

Contact Material

Copper Alloy

Contact Finish

Silver Plating

Electrical Characteristics

Rated Current

Rated Voltage

1500V

Rated Current

Rated Voltage

1500V

Environmental Characteristics

Ingress Protection

IP67

Flammability

UL94 V-0

Operating Temperature

-40℃~125℃

Ingress Protection

IP67

Flammability

UL94 V-0

Operating Temperature

-40℃~125℃

HVIL, or high-voltage interlock loop, is a safety feature of hybrid and all-electric vehicles that protects people during the assembly, repair, maintenance and operation of a vehicle. The HVIL system is in place to protect those who may come into contact with high-voltage components at any stage of the electric vehicle lifecycle. HVIL acts as a circuit breaker that sends an alert or trouble code to the driver if a high-voltage connection becomes loose, disconnected or damaged during the vehicle’s operation. It also helps protect a vehicle’s driver and passengers in the event of an accident.


HVIL connector consists of a plug wrench with a card slot, a secondary lock with a guide slot and a high-voltage interlock microswitch to form an interlock mechanism. High-voltage interlock connectors include solutions for high-voltage, high-current, and signal connections for hybrid and electric vehicle high-voltage power harnesses and signal connections. It is available in a wide range of product options, 1 core to 3 cores, rated from 23A to 250A, touch resistant, single or multi-core shielded cables are available.

Applications

High Voltage Power Distribution, Battery Pack, Motor Controller, Electric Air Conditioning, Electric Heater, etc…

Check out the attachment for the product catalog of the High Voltage Interlock Connector.



High Voltage Interlock Connector Catalog.PDF
