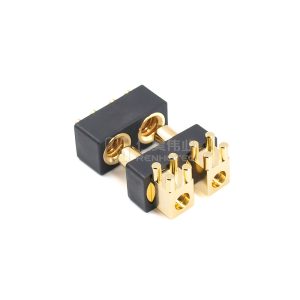

Floating Board to Board Connector
Our floating Board to Board connector is essential for board-to-board connections. In assembly, traditional connectors may have eccentricity from manufacturing tolerances, causing small contact areas, high current density, local heating, and potential damage to PCBA and components. But ours overcomes this. It uses spring contact fingers for multi-point contact, cutting local current density. The automatic floating centering function ensures stable connections despite manufacturing variations.
Product Parameters
Rated Current | 100A |
---|---|
Pin Diameter | 6mm |
Connector Type | Plug / Socket |
Orientation | Right Angle |
Number of Positions | 2P |
Number of Soldering Legs | 4 Legs |
Mounting Type | PCB – through hole (DIP) |
Contact Termination | Solder |
Shell Material | Black PA46 |
Spring Material & Finish | Beryllium bronze with gold plating |
Contact Material | Brass H59 with gold plating |
Contact Finish | Gold plating |
Contact Resistance | 0.2-0.5m?? |
Temperature Range | -40??~125?? |
Temperature Rise | Max 50K |
Mechanical Life | 10000 Times |
Products Feature
- Low resistance, low heat and long life:Floating and multi-point contact design makes the contact resistance small, the temperature rise low, and the product life is extended.
- Convenient assembly:Effectively eliminates misalignment, facilitates PCB connector assembly, and simplifies the operation process.
- Reliable connection:The floating pin is automatically centered by axial oblique spring movement and floating offset, and cooperates with multi-point contact to ensure stable and reliable connection.
- Exquisite structure:Unique axial oblique spring and oblique spring structure achieves a variety of excellent performance and improves the overall quality of the product.
- Flexible design:A?single PCB canaccommodate multiple board-to-board connectors.
- Low physical strength:Decrease physical strength to achieve reliable PCB interconnect.
Products Detail
Floating Board to Board Connector is a board-to-board connector designed to solve the misalignment problem in circuit board connections. The connector is mainly composed of a floating pin, an axial canted coil spring, and a canted coil spring. The floating pin can move on the axial canted coil spring to achieve floating offset and automatic centering functions. The axial canted coil spring and the canted coil spring work together to ensure multi-point contact, which not only helps to reduce contact resistance and temperature rise, but also increases the service life of the connector. This design effectively eliminates misalignment during PCB connector assembly and ensures reliable and stable connections.
Floating Board to Board Connector is a floating connector used to connect circuit boards. It consists of multiple components, including male proprietor, male plastic parts, female plastic parts, female proprietor, axial spring contacts, male pins, and radial spring contacts. These components work together to ensure that misalignment can be effectively compensated when connecting circuit boards, provide reliable electrical connections, and have a certain floating ability to adapt to different installation requirements.
How to Order
Application
Telecommunication/ Network
- Server (computer)
- Data storage units
- Data Center Servers
Business and Industrial Infrastructure
- Enterprise switches
- Network routers
- Power distribution unit
- Environmental control equipment
- Industrial Inverter
UPS(Uninterruptible Power Supply)
- Industrial Automation
- Battery charging stations
- DC-to-AC inverters
- AC-to-DC rectifiers
- Robotics
