GB/T AC 16A EV Charging Connector Socket Standard Single-phase Electric Car 250V for Vehicle End

Part NO.: NV3C-RHT-G-EV16S Categories: , Tags: , , , , , , , ,
  • Copper Alloy Silver Plated.
  • High Durability, Corrosion Resistance, Oxidation Resistance.
  • Strong Waterproof Performance.
  • Can Afford 1m Drop and 2t Vehicle Run over Pressure.
  • Nice Appearance, Hand-held Ergonomic Design, Easy Plug.
Get A Quotation

Product Type

Connector Type

Rated Type

AC

Power Phase

Shell Material

Themoplastic

Color

Black

Application

Vehicle End

Connector Type

Rated Type

AC

Power Phase

Shell Material

Themoplastic

Color

Black

Application

Vehicle End

Electrical Characteristics

Rated Voltage

750V

Rated Current

Contact Resistance

0.5MΩ MAX

Insulation Resistance

Power

4kW

Withstand Voltage

2000V

Rated Voltage

750V

Rated Current

Contact Resistance

0.5MΩ MAX

Insulation Resistance

Power

4kW

Withstand Voltage

2000V

Standards and Specifications

Charging Standards

GB/T 20234.2-2015

Charging Standards

GB/T 20234.2-2015

Contact Type

Contact Material

Copper Alloy

Contact Finish

Silver Plating

Contact Material

Copper Alloy

Contact Finish

Silver Plating

Environmental Characteristics

Ingress Protection

IP65

Flammability

UL94 V-0

Operating Temperature

-30℃~50℃

Ingress Protection

IP65

Flammability

UL94 V-0

Operating Temperature

-30℃~50℃

Mechanical Characteristics

Mating Cycles

≥10000

Mating Cycles

≥10000

Renhotec is a manufacturer specializing in EV charging products. In addition to production, our company has design and r&d departments. Our main products are EV charging stations, EV cables, and EV connectors. Along with the regular products, we also offer product customization services upon request to meet local market preferences and needs.

GB/T AC Charging Connector

The AC standard (GB/T 20234.2) uses male and female connectors physically compatible with the European Type 2 connector. But with different configurations and signaling. While the European implementation of Type 2 (IEC 62196-2 Type 2) uses a female connector and male vehicle inlet, GB/T 20234.2 specifies a male connector and female vehicle inlet. Both IEC 62196-2 Type 2 and GB/T 20234.2 specify a female socket outlet and male plug. In addition, GB/T 20234.2 uses CC/CP (charging confirmation and control pilot) signals, instead of PP/CP (proximity pilot and control pilot) signaling.

For the male plug and connector ends, the shape is a flattened circle with a nominal outer diameter of 51 mm (2.0 in). The flattened section reduces this to 44 mm (1.7 in), measured from top to bottom.

GB standard AC charging

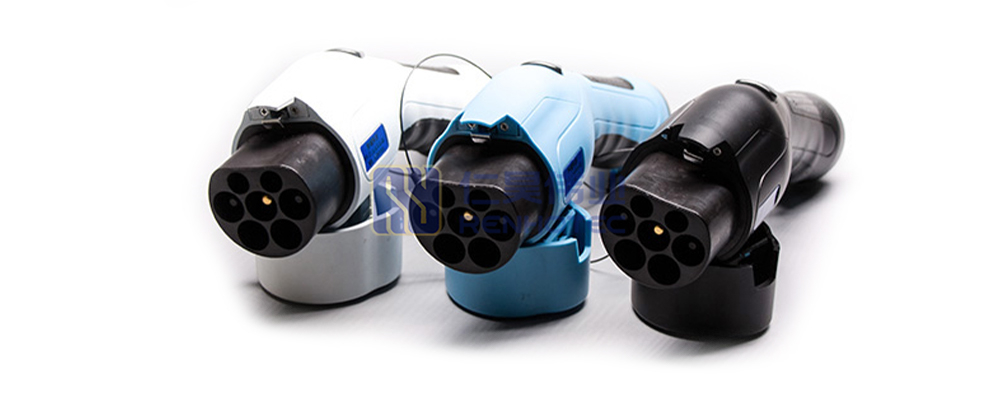

GB standard AC charging plug

It allows Mode 2 (250V) or Mode 3 (440V) single-phase AC charging up to 8 or 27.7 kW, respectively. In Mode 2, power is supplied with a current of 10/16/32A and a voltage of 250V. In Mode 3, power is supplied with a current of 16/32/63A and a voltage of 440V. Although the seven-pin interface is capable of passing three-phase AC power, the current implementation is limited to single-phase power.

GB/T china ac standard charging

Check out the attachment for the product catalog of the EV charging connector.



EV Charging Connector Catalog.PDF
