Features a dedicated HVIL system to monitor connection status, ensuring high-voltage safety during operation and maintenance. The interlock loop triggers immediate circuit disconnection if the connector is uncoupled under load.
Engineered to support rated voltages up to 1500V and currents up to 250A, utilizing silver-plated copper alloy contacts for stable conductivity. Optimized for high-current throughput with minimal thermal rise.
Constructed with premium PA66+GF reinforced housing, meeting UL94V-0 flame retardancy standards. Designed to withstand mechanical impact and chemical exposure in harsh automotive environments.
Provides IP67/IP68-rated ingress protection against dust and water immersion. Integrated 360° shielding ensures superior EMI/RFI performance to maintain signal integrity in electromagnetic-heavy environments.
Validated for an operating temperature range of -40°C to 125°C and a service life exceeding 500 mating cycles. Each unit undergoes rigorous QC to ensure long-term stability in mission-critical applications.
Our HVIL series connectors are essential safety components widely utilized in Electric Vehicle (EV) powertrains, Battery Management Systems (BMS), and Energy Storage Systems (ESS). Based on real-world client feedback, these connectors provide reliable high-voltage interlock protection for Power Distribution Units (PDU), Motor Control Units (MCU), On-board Chargers (OBC), and high-power inverter systems, ensuring operational security across the entire high-voltage circuit.
EV Powertrain & Chassis
PDU & MCU Integration
BMS & Battery Systems
All certifications listed below are held by Renhotec or our verified manufacturing facilities, ensuring full compliance with international automotive and safety standards.
By understanding the Renhotec Part Numbering System, you can quickly identify the specific model, configuration, or component you need. The chart below illustrates the coding rules for our HVIL Series, guiding you to select the correct current rating, cable size, and keying options.
Renhotec provides a comprehensive One-Stop Solution. From concept to mass production, our rigorous engineering process ensures your specific requirements are met with precision.
→
→
→
→
→
→
→
→
Our HVIL series is designed for high-power demands, supporting rated currents up to 250A and rated voltages reaching 1500V DC, making them ideal for the latest EV and solar energy architectures.
The HVIL system utilizes a built-in low-voltage signal loop to monitor the connection status. It ensures that the high-voltage circuit is de-energized before the power contacts are separated, protecting users and sensitive electronics from arcing.
Yes. All products in this series offer IP67 or IP68 rated protection, ensuring they are completely dust-tight and capable of withstanding immersion in water, which is essential for chassis-mounted or outdoor applications.
We use premium PA66 with glass fiber for the shells to ensure thermal stability and UL94V-0 flame retardancy. The contacts are crafted from high-grade copper alloy with silver or tin plating to maintain low contact resistance over 500+ mating cycles.
Yes, our connectors feature shielding structures that effectively suppress electromagnetic interference, ensuring stable signal integrity and power transmission even in proximity to high-frequency components.
We welcome sample requests from our corporate clients. We can provide specific models for your engineering team to perform fit-form-function testing and ensure full compatibility with your system.
| Connector Type | |||
|---|---|---|---|
| Orientation | |||
| Number of Positions | |||
| Terminal | 6mm |
||
| Mounting Type | 4-Hole Flange Panel Mount |
||
| Key | A |
||
| Shell Material | |||
| Color | Silver |
||
| Features | With HVIL |
||
| Connector Type | Orientation | ||
| Number of Positions | Terminal | 6mm |
|
| Mounting Type | 4-Hole Flange Panel Mount |
Key | A |
| Shell Material | Color | Silver |
|
| Features | With HVIL |
| Contact Termination | Busbar |
||
|---|---|---|---|
| Contact Material | Copper Alloy |
||
| Contact Finish | Nickel Plating |
||
| Contact Termination | Busbar |
Contact Material | Copper Alloy |
| Contact Finish | Nickel Plating |
| Rated Voltage | 800V |
||
|---|---|---|---|
| Rated Current | |||
| Rated Voltage | 800V |
Rated Current |
| Shielding Performance | Shielded |
|---|---|
| Shielding Performance | Shielded |
| Ingress Protection | IP67 |
||
|---|---|---|---|
| Operating Temperature | -40℃~125℃ |
||
| Flammability | UL 94 V-0 |
||
| Ingress Protection | IP67 |
Operating Temperature | -40℃~125℃ |
| Flammability | UL 94 V-0 |

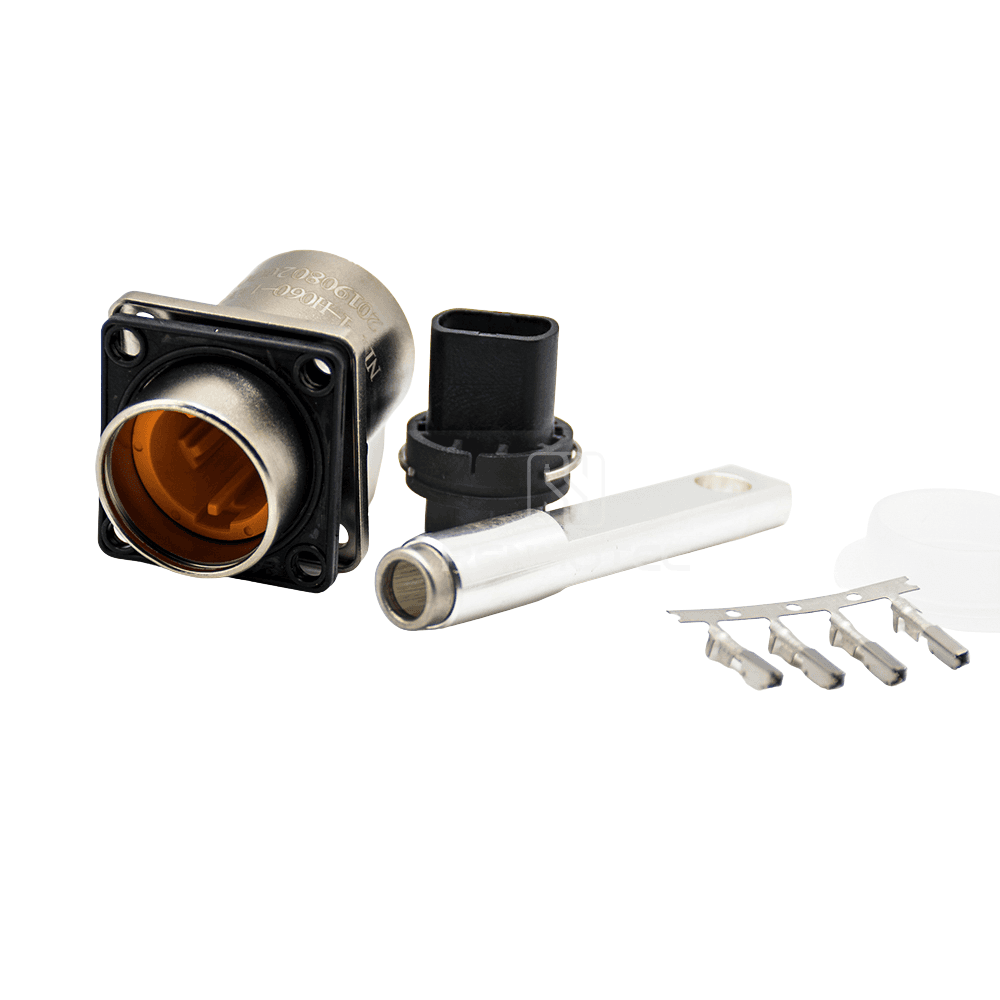

| Connector Type | |
|---|---|
| Orientation | |
| Number of Positions | |
| Terminal | 6mm |
| Contact Termination | Busbar |
| Rated Voltage | 800V |
| Rated Current | |
| Mounting Type | 4-Hole Flange Panel Mount |
| Key | A |
| Shell Material | |
| Contact Material | Copper Alloy |
| Contact Finish | Nickel Plating |
| Shielding Performance | Shielded |
| Ingress Protection | IP67 |
| Color | Silver |
| Features | With HVIL |
| Operating Temperature | -40℃~125℃ |
| Flammability | UL 94 V-0 |
