Electrical
| Dielectric Strength | 3000V |
||
|---|---|---|---|
| Rated Current | |||
| Rated Voltage | 600V AC |
||
| Dielectric Strength | 3000V |
Rated Current | |
| Rated Voltage | 600V AC |
Product Type
| Docking Method | Thread |
||
|---|---|---|---|
| Mounting Type | Panel Mount |
||
| Color | Black, Red |
||
| Orientation | |||
| Terminal Size | N/A |
||
| Contact Finish | Nickel Plating |
||
| Terminal Material | Cooper |
||
| Thread diameter(Top/Bottom) | M8/M6 |
||
| Shell Material | PA66 |
||
| Shielding | 360° |
||
| Docking Method | Thread |
Mounting Type | Panel Mount |
| Color | Black, Red |
Orientation | |
| Terminal Size | N/A |
Contact Finish | Nickel Plating |
| Terminal Material | Cooper |
Thread diameter(Top/Bottom) | M8/M6 |
| Shell Material | PA66 |
Shielding | 360° |
Mechanical
| Insertion Times | > 500 |
|---|---|
| Insertion Times | > 500 |
Environmental
| Operating Temperature | -40℃~125℃ |
|---|---|
| Operating Temperature | -40℃~125℃ |
| Dielectric Strength | 3000V |
|---|---|
| Docking Method | Thread |
| Insertion Times | > 500 |
| Mounting Type | Panel Mount |
| Color | Black, Red |
| Orientation | |
| Rated Current | |
| Terminal Size | N/A |
| Rated Voltage | 600V AC |
| Operating Temperature | -40℃~125℃ |
| Contact Finish | Nickel Plating |
| Terminal Material | Cooper |
| Thread diameter(Top/Bottom) | M8/M6 |
| Shell Material | PA66 |
| Shielding | 360° |

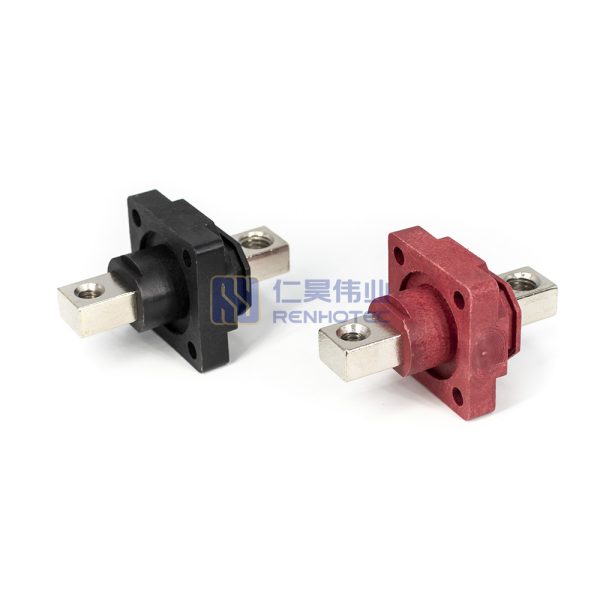

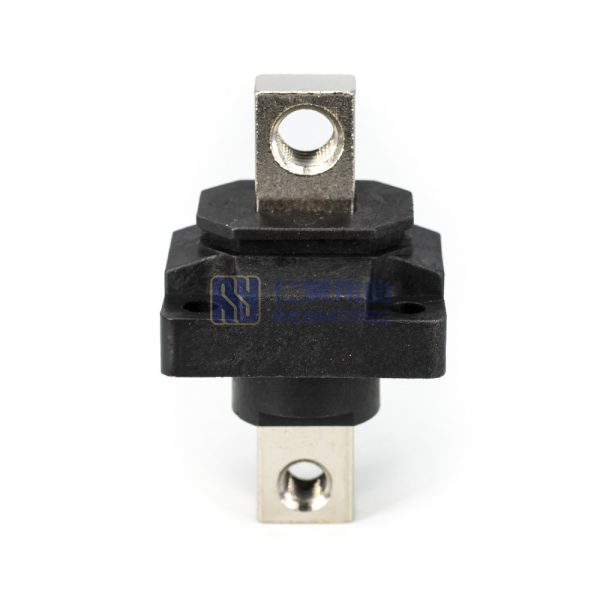

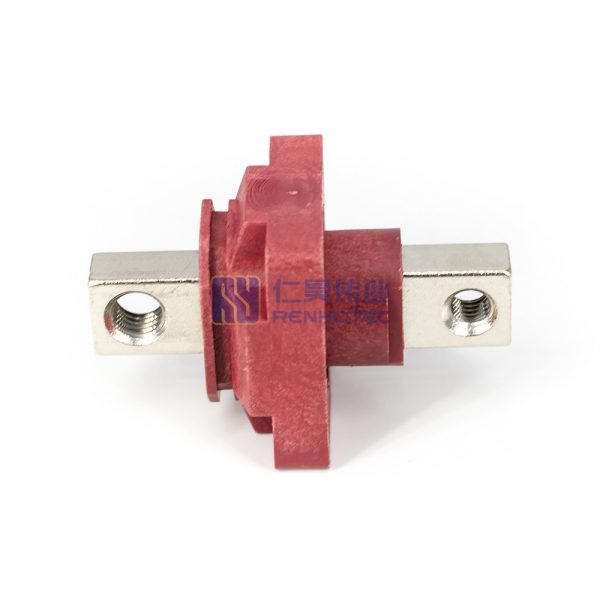

The High Current Copper Terminal refers to the posts used to connect wires on ammeters, voltmeters, and resistance meters. The terminal blocks are made of environmentally friendly materials, which can reduce impact and avoid falling over time. Professional manufacturing, stable performance and high reliability.
The product adopts a PA66 flame-retardant material shell. It is insulating and flame retardant. The conductive parts are made of brass, which has strong conductivity and is not easy to overheat. The terminal connectors are made of copper, a high-quality material that can ensure the durability and stability of the product so that it can be used for a long time.
Through Wall Power Terminal Drawing
