Product Type
| Item | LN Terminal, PE Terminal |
||
|---|---|---|---|
| Material | Brass, Copper |
||
| Contact Material | Beryllium Bronze |
||
| Contact Finish | Gold Plating, Silver Plating |
||
| Diameter | 2.78mm, 3.58mm |
||
| Item | LN Terminal, PE Terminal |
Material | Brass, Copper |
| Contact Material | Beryllium Bronze |
Contact Finish | Gold Plating, Silver Plating |
| Diameter | 2.78mm, 3.58mm |
Electrical
| Rated Current | |||
|---|---|---|---|
| Rated Voltage | 1000V/DC |
||
| Contact Resistance | 0.5MΩ MAX |
||
| Rated Current | Rated Voltage | 1000V/DC |
|
| Contact Resistance | 0.5MΩ MAX |
Mechanical
| Mating Cycles | ≥10000 |
||
|---|---|---|---|
| Pulling Force | ≤(10-15N) |
||
| Mating Cycles | ≥10000 |
Pulling Force | ≤(10-15N) |
Environmental
| Operating Temperature | Max120℃ |
|---|---|
| Operating Temperature | Max120℃ |
| Item | LN Terminal, PE Terminal |
|---|---|
| Rated Current | |
| Rated Voltage | 1000V/DC |
| Material | Brass, Copper |
| Contact Material | Beryllium Bronze |
| Contact Finish | Gold Plating, Silver Plating |
| Contact Resistance | 0.5MΩ MAX |
| Diameter | 2.78mm, 3.58mm |
| Mating Cycles | ≥10000 |
| Operating Temperature | Max120℃ |
| Pulling Force | ≤(10-15N) |
The machining terminal generally adopts a cylindrical structure, primarily using the female terminal as an elastic structure, and its current transmission method usually adopts the form of a crown spring, hyperboloid spring, and lamella spring and the coating is applying silver material. Automotive hard silver plating technology is able to be working on every charging interface. And this hard silver plating technology can effectively extend the service life of car.

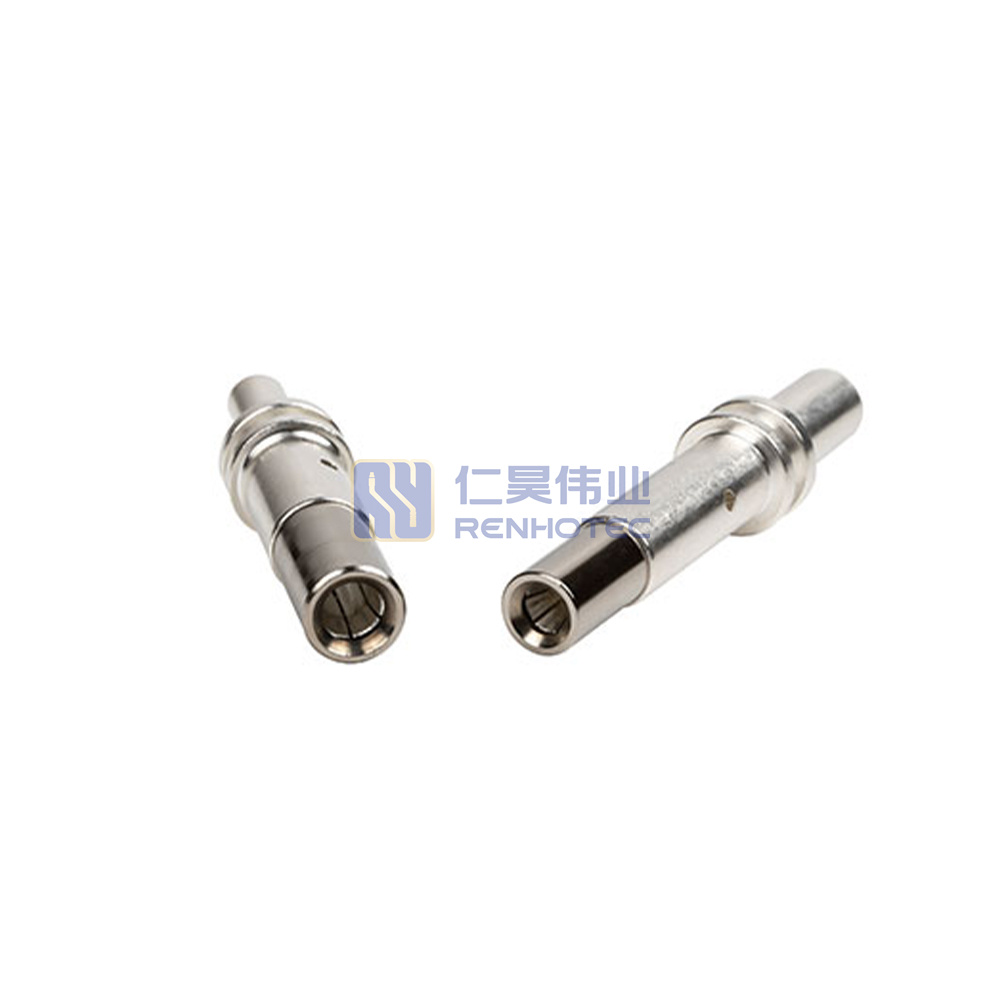

Lamella Contact Pins |
|||||
|---|---|---|---|---|---|
| Product Code | Rated Current | Dimension（mm） | Contact Resistance | Pulling Force ≤ (N) | MAX Time（H） |
| RHT-LCP-LN-32 | 32A | 3.58mm | ≤0.5mΩ | ≤(10-15N) | 8H |
| RHT-LCP-PE-16 | 16A | 2.78mm | |||
| RHT-LCP-PE-32 | 32A | 2.78mm | |||
