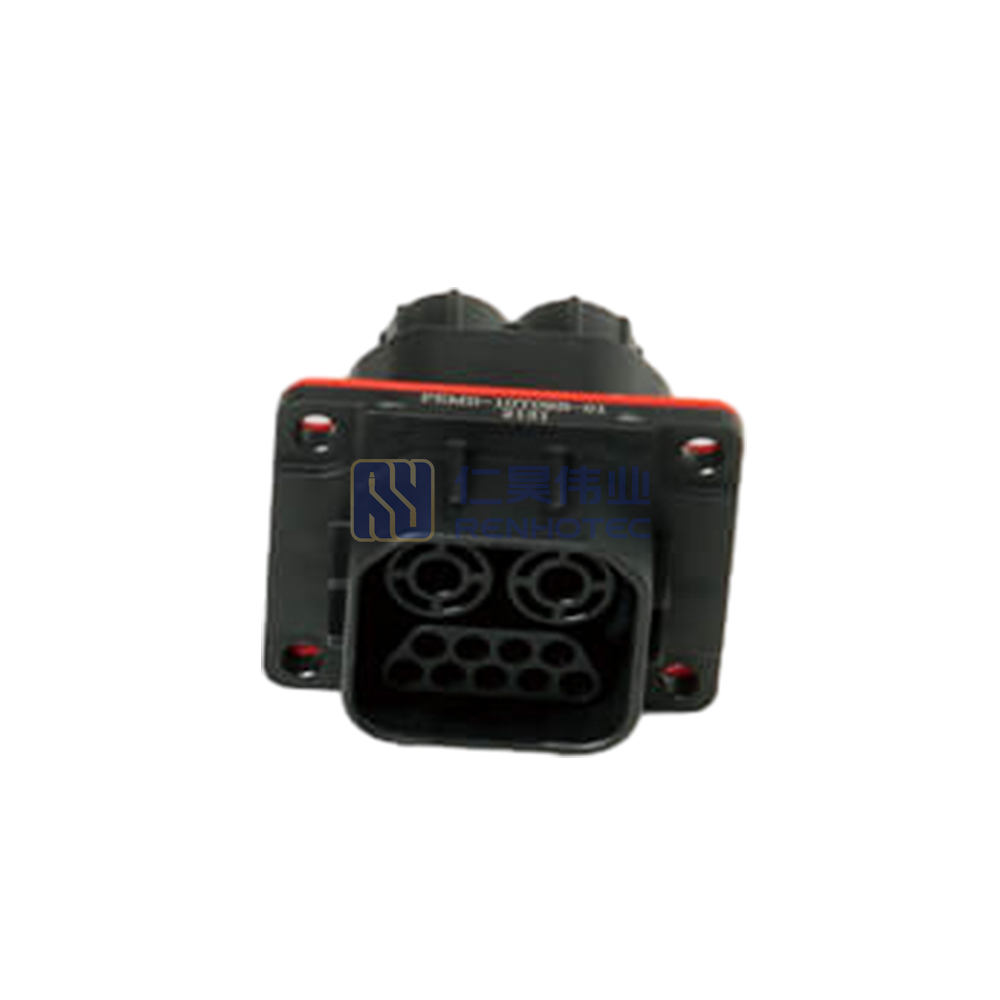

Product Type
| Connector Type | |||
|---|---|---|---|
| Number of Positions | |||
| Orientation | |||
| Mounting Type | Panel Mount |
||
| Mounting Feature | 4 Hole Flange |
||
| Shell Material | PA66 |
||
| Color | Black |
||
| Features | External Sockets |
||
| Wire Range | Power: 10mm², Signal: 20AWG |
||
| Certificate | CE |
||
| Connector Type | Number of Positions | ||
| Orientation | Mounting Type | Panel Mount |
|
| Mounting Feature | 4 Hole Flange |
Shell Material | PA66 |
| Color | Black |
Features | External Sockets |
| Wire Range | Power: 10mm², Signal: 20AWG |
Certificate | CE |
Electrical Characteristics
| Rated Current | |||
|---|---|---|---|
| Rated Voltage | 1000V |
||
| Rated Current | Rated Voltage | 1000V |
Mechanical Characteristics
| Mating Cycles | 500~3000 Times |
|---|---|
| Mating Cycles | 500~3000 Times |
Environmental Characteristics
| Ingress Protection | IP67 (Mated) |
||
|---|---|---|---|
| Salt Spray Resistance | 144H (Mating State) |
||
| Ingress Protection | IP67 (Mated) |
Salt Spray Resistance | 144H (Mating State) |
Hybrid connectors are clever little designs that bundle power, signals, and communication into one handy package. They can push electricity, carry control signals, and handle data all at once. That means less wiring mess to deal with, plus they help the whole system work together better. In low-speed vehicle battery swaps, they’re the go-between for the battery pack and the vehicle’s main controls, making sure power flows, the battery’s status gets tracked, and communication stays open.
Design Features
- High Current-Carrying Capacity: Power terminals use high-conductivity materials (eg, copper alloy) to support high-current transmission (available in 40A, 55A, 60A, 70A, 80A, 100A, 125A, 150A).
- Modular Design: Integrate power, signal, and communication function modules into a single connector, simplifying installation and maintenance.
- Waterproof Sealing: Use silicone sealing rings, waterproof housings, and other designs to ensure reliability in humid environments.
- Guiding and Locking Mechanisms: Include guiding slots and locking mechanisms to ensure alignment and stability during plugging and unplugging, preventing loosening.
- Misplugging Prevention: Use unique interface shapes or coding designs to prevent incorrect connections.
- Durability: Use high-strength materials to support tens of thousands of plugging and unplugging operations.
Hybrid Connector Drawing
Application
The Product is vehicle connector ,which is used for the connection between electric vehicle or electric motocy-cle parts.
