Product Description
- Made of environmentally friendly, lead-free, and non-toxic materials, it complies with RoHS standards and meets global industrial environmental protection requirements.
- Long-lasting and stable elasticity: The spring element undergoes a special heat treatment and is made of high-quality beryllium copper (BeCu) alloy, ensuring that its elasticity persists and deformation does not occur even after repeated plugging and unplugging.
- High Current, High Stability: Beryllium copper alloy has excellent conductivity, maintaining a stable and constant temperature even under high current transmission conditions, ensuring reliable continuous discharge capability.
- Wear and oxidation resistance: The plug surface is plated with 24K genuine gold, ensuring that the plating does not peel off after thousands of plugging and unplugging cycles, effectively preventing copper oxidation and significantly extending product life and connection stability.
- Quality Assurance: The entire product line undergoes strict quality control and is suitable for demanding industrial, testing, energy, and other applications.
Banana Pins Data Sheets List
| Product code | Type | Diameter | Length | Max continuous current | Wire gage | Instantaneous current | #of uses |
|---|---|---|---|---|---|---|---|
| BP-D2.0-A30 | male pin | 2.00mm | 14.5mm | 15A | 18AWG | 30A | 2000 times |
| female pin | 14.6mm | ||||||
| BP-D3.0-A40 | male pin | 3.00mm | 12.8mm | 20A | 16AWG | 40A | |
| female pin | 14.0mm | ||||||

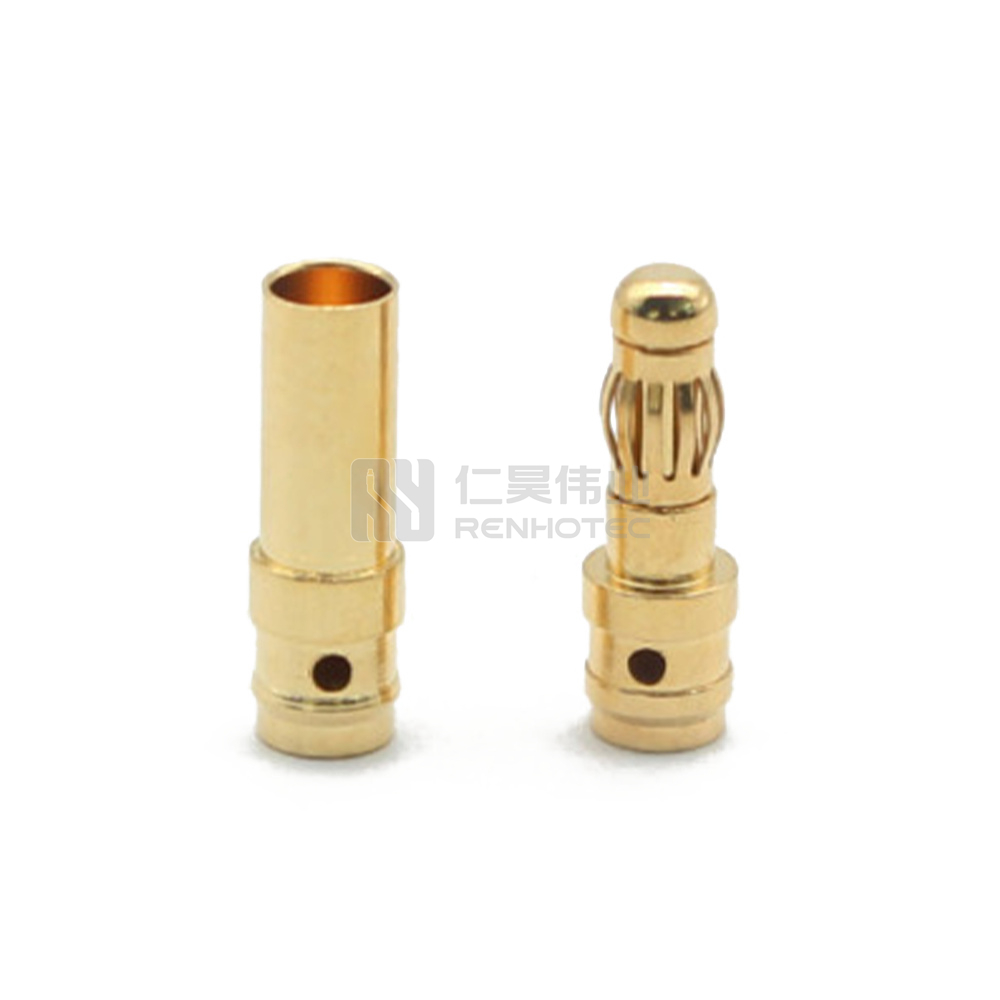

| BP-D3.5-A60 | male pin | 3.50mm | 12.5mm | 30A | 14AWG | 60A | |
| female pin | 12.1mm | ||||||
| BP-D4.0-A80 | male pin | 4.00mm | 19.6mm | 40A | 12AWG | 80A | |
| female pin | 20.5mm | ||||||
| BP-D5.0-A100 | male pin | 5.00mm | 19.0mm | 50A | 10AWG | 100A | 1000 times |
| female pin | 18.0mm | ||||||
| BP-D5.5-A110 | male pin | 5.50mm | 19.0mm | 55A | 8AWG | 110A | |
| female pin | 18.0mm | ||||||
| BP-D6.0-A120 | male pin | 6.00mm | 14.1mm | 60A | 7AWG | 120A | |
| female pin | 14.8mm | ||||||
| BP-D8.0-A160 | male pin | 8.00mm | 14.1mm | 80A | 6AWG | 160A | |
| female pin | 14.8mm |

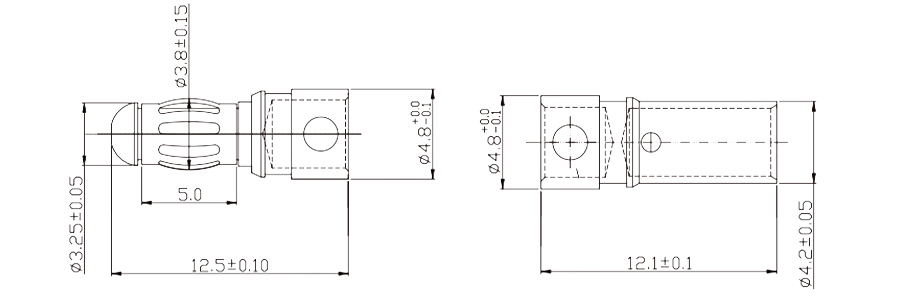

Product Dimensions
