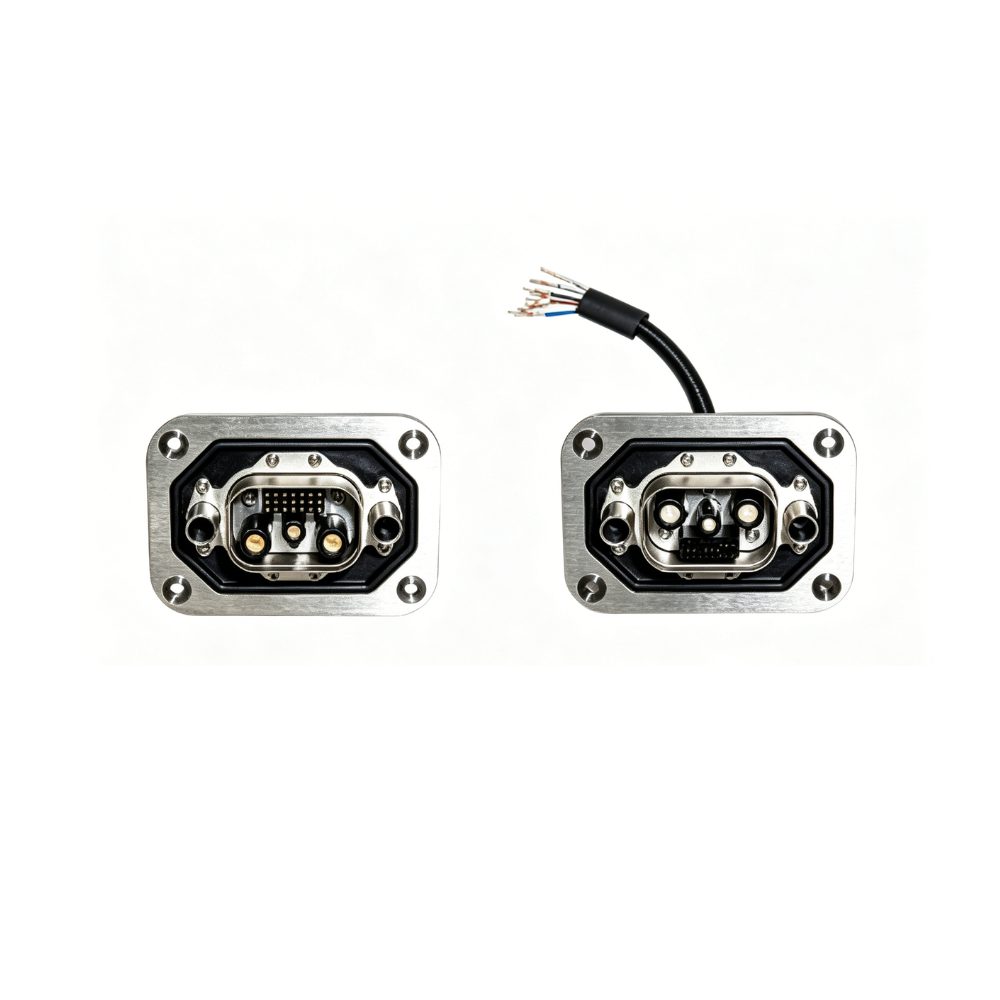

300A/400A Quick Battery Swapping Connector Vehicle Side

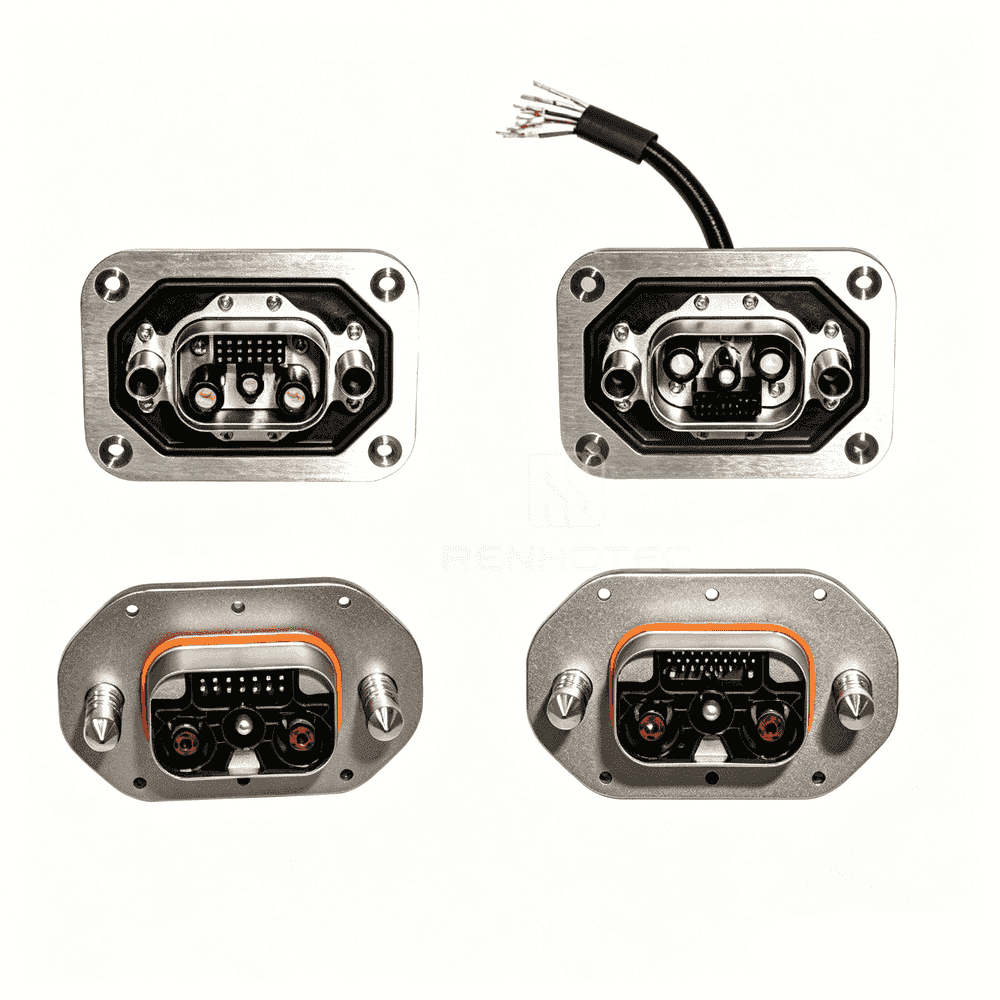

300A/400A Quick Battery Swapping Connector Vehicle Side - Image 2

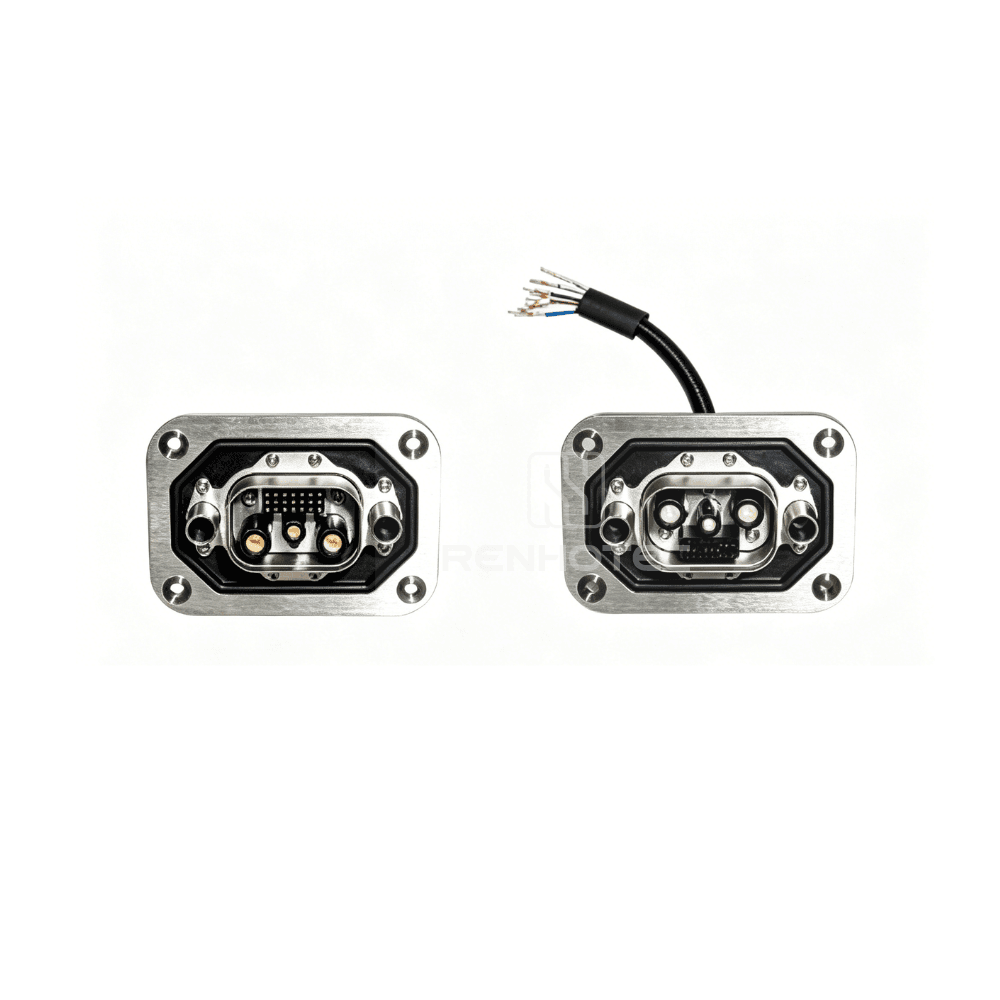

300A/400A Quick Battery Swapping Connector Vehicle Side

Part NO.: FFC6202()()()S-()RH Category:
  • Up to 400A / 1500V DC Capacity
  • Signal Pins Options: 10P, 21P, 30P
  • IP67 Rating & 480H Salt Spray Resistance
  • Hybrid Power & Signal Configuration
  • Temperature Sensor Options (NTC 10K)
  • Float in X, Y, Z Directions
Get A Quotation
Connector Type
MaleFemale

Flexible termination method to meet your specific vehicle and battery side connection needs.

Battery Side - Copper Busbar with Threaded Through-Hole

Battery Side

Copper Busbar with Threads Hole

Battery Side - Internal Thread

Battery Side

Internal Screw Hole

Battery Side - Flying Lead

Battery Side

Flying Lead

Vehicle Side - Straight Plug with FFC or FPT

Vehicle Side

with Straight Plug Adapter

Vehicle Side - Right Angle Plug with FFC or FPT

Vehicle Side

with Right Angle Plug Adapter

Vehicle Side - Flying Lead

Vehicle Side

Flying Lead

Signal Pins - 10P, 21P, 30P

Signal Pins

10P, 21P, 30P

As a group-level source manufacturer, Renhotec offers an extensive range of battery swapping connectors. The chart below demonstrates our full manufacturing capabilities. You can find the corresponding meaning of each segment on your existing part numbers.

FFC
62
0
( )
( )
( )
P
–( )
FFC
Battery Swap Connector Series
62
0
( )
( )
( )
P
–( )
Vehicle Side:
62: Vehicle Side
Reserved Field
Temperature Sensor:
2: Without Temperature Sensor
3: Power Terminal with Temperature Sensor (NTC 10K)
Power Terminal Size:
12: Ø12.0mm Terminal (MAX 300A)
14: Ø14.0mm Terminal (MAX 400A)
Signal Pin Count:
10: 10 Signal Pins (Including 2 Interlock Pins)
21: 21 Signal Pins (Including 2 Interlock Pins)
30: 30 Signal Pins (Including 2 Interlock Pins)
Assembly Type:
S: Assembly Hole
Termination / Receptacle:
FPL: Mates with FPL1801 Connector (MAX 250A)
FPT1: Mates with FPT2201 Connector (MAX 300A)
FPT2: Mates with FPT22F1 Connector (MAX 400A)
50S: Flying Lead 50mm² Shielded Cable (MAX 200A)
70S: Flying Lead 70mm² Shielded Cable (MAX 300A)

Product Type

Connector Type

Shell Material

Insulation Material

Thermoplastic
Wire Gauge

35mm2-120mm2
Connector Type

Shell Material

Insulation Material

Thermoplastic

 Wire Gauge

35mm2-120mm2

Number of Pins

2 Power+ 1 PE + 10/21/30 Signal
Termination Type

FPL/FTP Plug / Cable Crimping
IP Rating

IP67
Salt Spray Rating

480H
Floating

X, Y axis: ±5mm; Z axis: +0/-10mm; Angle: ≤2°
NTC 10K

Optional
Number of Pins

2 Power+ 1 PE + 10/21/30 Signal

 Termination Type

FPL/FTP Plug / Cable Crimping
IP Rating

IP67

 Salt Spray Rating

480H
Floating

X, Y axis: ±5mm; Z axis: +0/-10mm; Angle: ≤2°

 NTC 10K

Optional

Contact Type

Contact Material

Silver Plating on Copper
Contact Material

Silver Plating on Copper

Electrical Characteristics

Rated Current

Rated Voltage

1500V/DC(High Voltage) 300V/DC(Low Voltage Signal)
Insulation Resistance

Withstand Voltage

4000V AC
Rated Current

Rated Voltage

1500V/DC(High Voltage) 300V/DC(Low Voltage Signal)
Insulation Resistance

Withstand Voltage

4000V AC

Mechanical Characteristics

Mating Cycles

20000
Mating Cycles

20000

Environmental Characteristics

Operating Temperature

-40℃ to +125℃
Operating Temperature

-40℃ to +125℃
Connector Type

Number of Pins

2 Power+ 1 PE + 10/21/30 Signal
Termination Type

FPL/FTP Plug / Cable Crimping
Shell Material

Contact Material

Silver Plating on Copper
Insulation Material

Thermoplastic
Rated Current

Rated Voltage

1500V/DC(High Voltage) 300V/DC(Low Voltage Signal)
Insulation Resistance

Withstand Voltage

4000V AC
Mating Cycles

20000
Wire Gauge

35mm2-120mm2
IP Rating

IP67
Operating Temperature

-40℃ to +125℃
Salt Spray Rating

480H
Floating

X, Y axis: ±5mm; Z axis: +0/-10mm; Angle: ≤2°
NTC 10K

Optional
