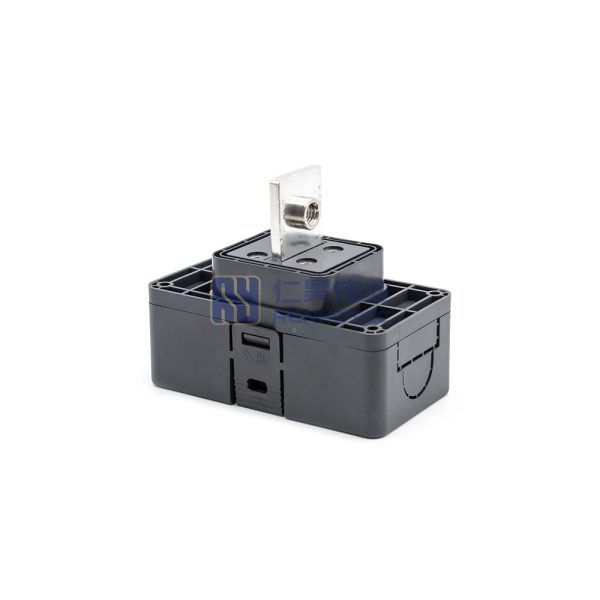

500A Waterproof High Voltage Battery Box Connector Black

Part NO.: FPB0X5510-HA-T8 Category:
  • Touch-proof
  • 360°shielding
  • Secondary lock function
  • Suitable for battery box and PDU connection
Get A Quotation

Product Type

Body Style

Square
Inside Thread

M8
Termination Method

Busbar
Mounting Type

Panel Mount
Shell Material

Color

Black
Body Style

Square

 Inside Thread

M8
Termination Method

Busbar

 Mounting Type

Panel Mount
Shell Material

Color

Black

Electrical Characteristics

Rated Voltage

1500V
Rated Current

Insulation Resistance

Test Voltage

3000VDC
Rated Voltage

1500V

 Rated Current

Insulation Resistance

Test Voltage

3000VDC

Contact Type

Contact Material

Copper Alloy
Contact Finish

Tin Plating
Contact Material

Copper Alloy

 Contact Finish

Tin Plating

Environmental Characteristics

Ingress Protection

IPXXB（Mated）
Operating Temperature

-40℃~125℃
Flammability

UL94 V-0
Salt Spray Resistance

48H
Ingress Protection

IPXXB（Mated）

 Operating Temperature

-40℃~125℃
Flammability

UL94 V-0

 Salt Spray Resistance

48H

It is mainly used for the high voltage current transmission on electric vehicle by line method, such as battery box and PDU connection;It is also suitable for electric control and other connections

Waterproof High Voltage Battery Box Connector
Part NO Body Style Inside Thread Termination Method Rated Voltage Rated Current Test Voltage Shell Material Contact Material Contact Finish
FBOX01-CN-70S-M / M10 Screw 1000V 300A 3000V DC Aluminum Alloy Nickel Plating Copper Alloy Tin Plating
FB0X3R1-HA-70S-M
FB0X3L1-CA-70S-M
/ Square M8 1500V 18KV DC Plastic
/
FPB0X5510-CA-T8 Busbar 500A 3000V DC
FPB0X5510-HA-T8
FPB0X12K6-CA-H6 M6 200A
FPB0X12K6-HA-H6

Application Scenario

It bases on Plastic material with characteristices of easy installation, economincal cost, and good at the same time; good electrical ,mechanical and environmental performance.

application scenario



FAQ

Suitable for:
1. Lithium – ion battery packs (e – bikes, energy storage systems, etc.)
2. Lead – acid batteries (industrial starting, backup power supplies)
3. Special – purpose batteries (high – power batteries for forklifts, AGVs)

Standard current range: 60A – 500A; some models can reach up to 600A.

Panel – mounted, with mounting styles including Busbar, inner screw, outer screw, etc.

Available in brass or copper options. Generally, brass is used for currents below 300A, while copper is used for currents above 300A.

Housing: PA66 material; Flamability rating is UL94 -V0.
