Product Type
| Series | AC GB, DC GB |
||
|---|---|---|---|
| Item | CC2 Terminal, LN Terminal, PE Terminal, CC Terminal, CC1 Terminal |
||
| Material | Brass, Copper |
||
| Contact Material | Beryllium Bronze |
||
| Contact Finish | Gold Plating, Silver Plating |
||
| Diameter | 3mm, 6mm, 12mm |
||
| Function | Signal, Earthing |
||
| Series | AC GB, DC GB |
Item | CC2 Terminal, LN Terminal, PE Terminal, CC Terminal, CC1 Terminal |
| Material | Brass, Copper |
Contact Material | Beryllium Bronze |
| Contact Finish | Gold Plating, Silver Plating |
Diameter | 3mm, 6mm, 12mm |
| Function | Signal, Earthing |
Electrical
| Rated Current | |||
|---|---|---|---|
| Rated Voltage | 1000V/DC |
||
| Rated Current | Rated Voltage | 1000V/DC |
Mechanical
| Mating Cycles | ≥10000 |
|---|---|
| Mating Cycles | ≥10000 |
Environmental
| Operating Temperature | -40℃~125℃ |
|---|---|
| Operating Temperature | -40℃~125℃ |
| Series | AC GB, DC GB |
|---|---|
| Item | CC2 Terminal, LN Terminal, PE Terminal, CC Terminal, CC1 Terminal |
| Rated Current | |
| Rated Voltage | 1000V/DC |
| Material | Brass, Copper |
| Contact Material | Beryllium Bronze |
| Contact Finish | Gold Plating, Silver Plating |
| Diameter | 3mm, 6mm, 12mm |
| Function | Signal, Earthing |
| Mating Cycles | ≥10000 |
| Operating Temperature | -40℃~125℃ |
The machining terminal generally adopts a cylindrical structure, primarily using the female terminal as an elastic structure, and its current transmission method usually adopts the form of a crown spring, hyperboloid spring, and lamella spring and the coating is applying silver material. Automotive hard silver plating technology is able to be working on every charging interface. And this hard silver plating technology can effectively extend the service life of car.

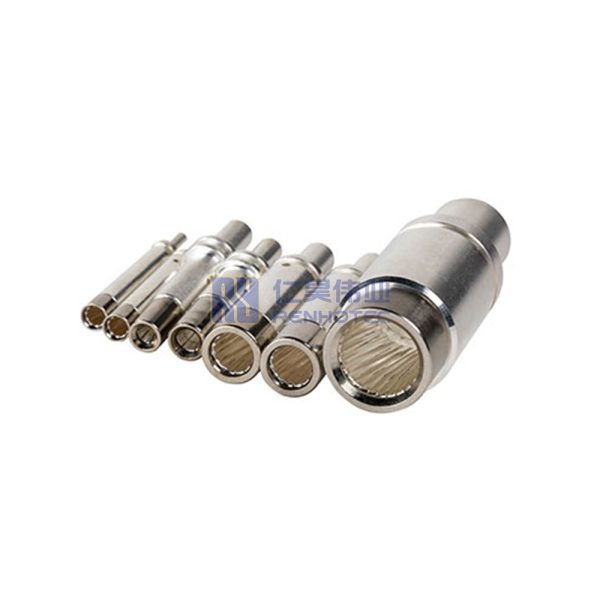

Charging Pin Connector For GB/T EV Charging Plug |
|||
|---|---|---|---|
| Product Code | Item | Rated current and function | Dimension（mm） |
| RHT-GBAC-LN | LN terminal | 250A/200A/125A/80A | 12mm |
| RHT-GBAC-PE | PE terminal | Earthing | 6mm |
| RHT-GBAC-CC1 | CC1 terminal | Signal | 3mm |
| RHT-GBAC-CC2 | CC2 terminal | Signal | 3mm |
| RHT-GBDC-LN | LN terminal | 200A/32A/16A | 6mm |
| RHT-GBDC-PE | PE terminal | 63A/32A/16A | 6mm |
| RHT-GBDC-CC | CC terminal | Signal | 3mm |
