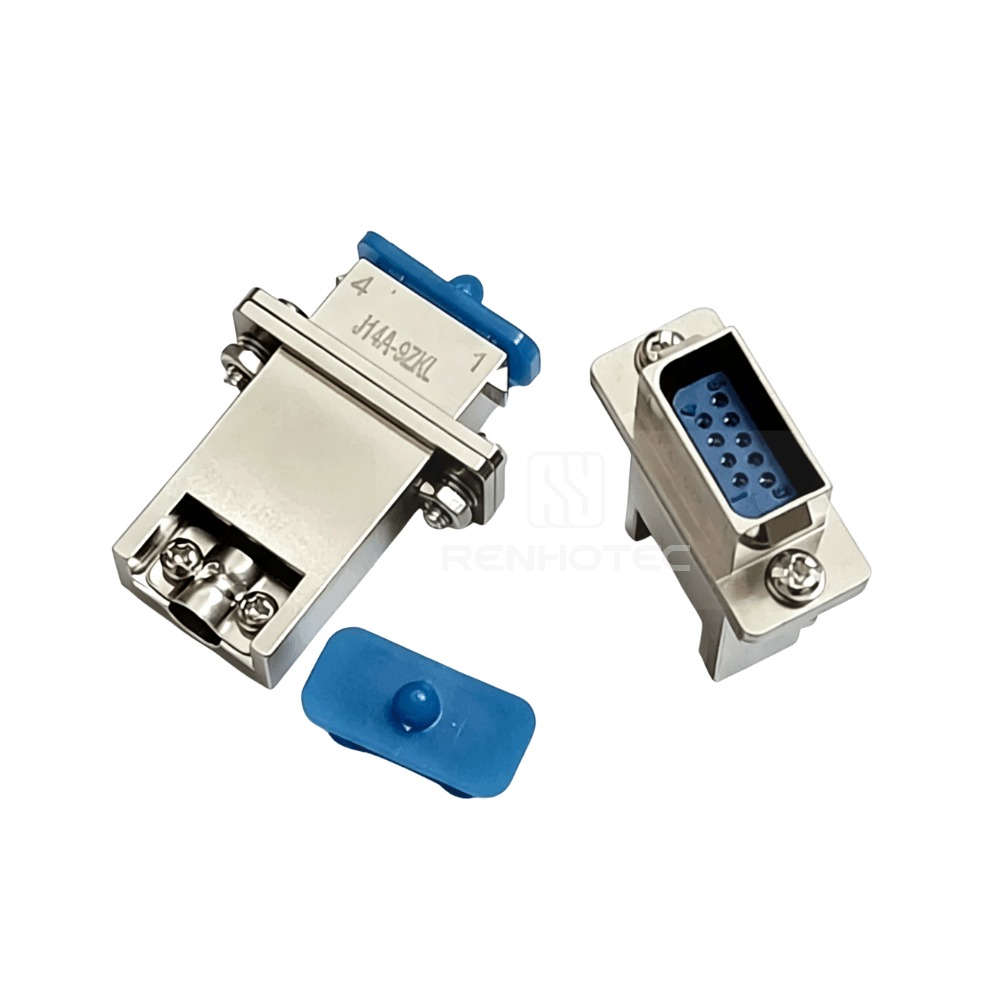

J14 Series J14A Metal Shell 9pin Micro-D MIL-Spec Cable Mount Female Socket J14A-9ZKL

J14 Series J14A Metal Shell 9pin Micro-D MIL-Spec Cable Mount Female Socket J14A-9ZKL

Part NO.: J14A-9ZKL Category: J14

Get A Quotation

Attributes

Product Type

Connector Type	Socket
Orientation	Straight
Mounting Type	Free Hanging
Color	Primary Color
Connector Type	Socket	Orientation	Straight
Mounting Type	Free Hanging	Color	Primary Color

Contact Type

Contact Type	Female
Number of Cores	9
Number of Interface Rows	2
Contact Termination	Soldering
Housing Material	Aluminum Alloy
Housing Plating	Nickel-plated
Contact size	0.8
Contact Type	Female	Number of Cores	9
Number of Interface Rows	2	Contact Termination	Soldering
Housing Material	Aluminum Alloy	Housing Plating	Nickel-plated
Contact size	0.8

Contact Plating	Gold-plated
Contact Plating	Gold-plated

Electrical Characteristics

Rated Current	3A
Withstand Dielectric Voltage	800V
Contact Resistance	≤ 10MΩ
Insulation Resistance	≥ 2000MΩ
Rated Current	3A	Withstand Dielectric Voltage	800V
Contact Resistance	≤ 10MΩ	Insulation Resistance	≥ 2000MΩ

Environmental Characteristics

Operating Temperature	-55℃~+125℃
Operating Temperature	-55℃~+125℃

Connector Type	Socket
Orientation	Straight
Contact Type	Female
Number of Cores	9
Number of Interface Rows	2
Mounting Type	Free Hanging
Contact Termination	Soldering
Color	Primary Color
Housing Material	Aluminum Alloy
Housing Plating	Nickel-plated
Contact Plating	Gold-plated
Contact size	0.8
Rated Current	3A
Withstand Dielectric Voltage	800V
Contact Resistance	≤ 10MΩ
Insulation Resistance	≥ 2000MΩ
Operating Temperature	-55℃~+125℃
