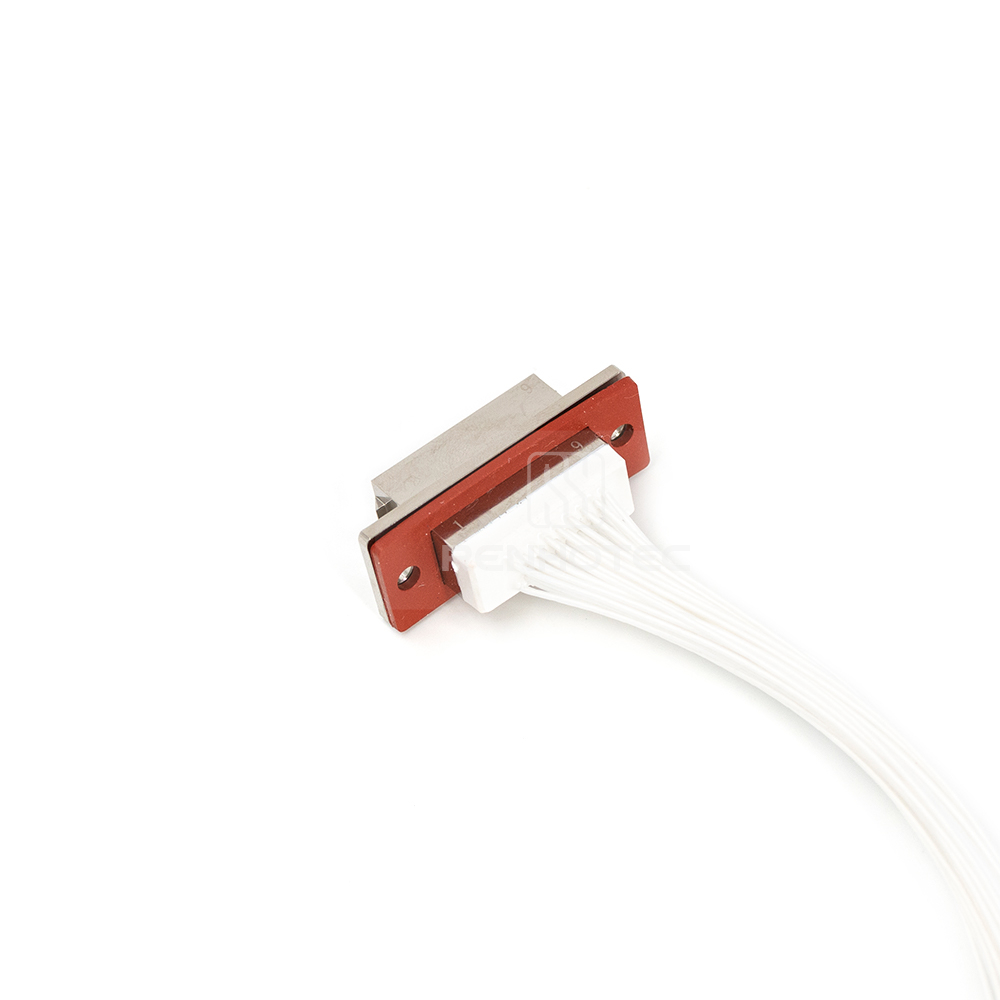

J14 Series J14B Metal Shell 26pin Micro-D MIL-Spec Female Socket with Cable, L=30cm J14B-26ZK-30

J14 Series J14B Metal Shell 26pin Micro-D MIL-Spec Female Socket with Cable, L=30cm J14B-26ZK-30

Part NO.: J14B-26ZJ-30 Category: J14

Get A Quotation

Attributes

Product Type

Connector Type	Socket
Orientation	Straight
Mounting Type	Panel Mount
Mounting Feature	Flange
Wire Length	30cm
Wire Gauge	0.15mm2
Color	Primary Color
Connector Type	Socket	Orientation	Straight
Mounting Type	Panel Mount	Mounting Feature	Flange
Wire Length	30cm	Wire Gauge	0.15mm2
Color	Primary Color

Contact Type

Contact Type	Female
Number of Cores	26
Number of Interface Rows	3
Contact Termination	Crimp
Housing Material	Aluminum Alloy
Housing Plating	Nickel-plated
Contact Type	Female	Number of Cores	26
Number of Interface Rows	3	Contact Termination	Crimp
Housing Material	Aluminum Alloy	Housing Plating	Nickel-plated

Contact Plating	Gold-plated
Contact Plating	Gold-plated

Electrical Characteristics

Rated Current	2A
Withstand Dielectric Voltage	800V
Contact Resistance	≤ 10MΩ
Insulation Resistance	≥ 2000MΩ
Rated Current	2A	Withstand Dielectric Voltage	800V
Contact Resistance	≤ 10MΩ	Insulation Resistance	≥ 2000MΩ

Connector Type	Socket
Orientation	Straight
Contact Type	Female
Number of Cores	26
Number of Interface Rows	3
Mounting Type	Panel Mount
Mounting Feature	Flange
Contact Termination	Crimp
Wire Length	30cm
Wire Gauge	0.15mm2
Color	Primary Color
Housing Material	Aluminum Alloy
Housing Plating	Nickel-plated
Contact Plating	Gold-plated
Rated Current	2A
Withstand Dielectric Voltage	800V
Contact Resistance	≤ 10MΩ
Insulation Resistance	≥ 2000MΩ
