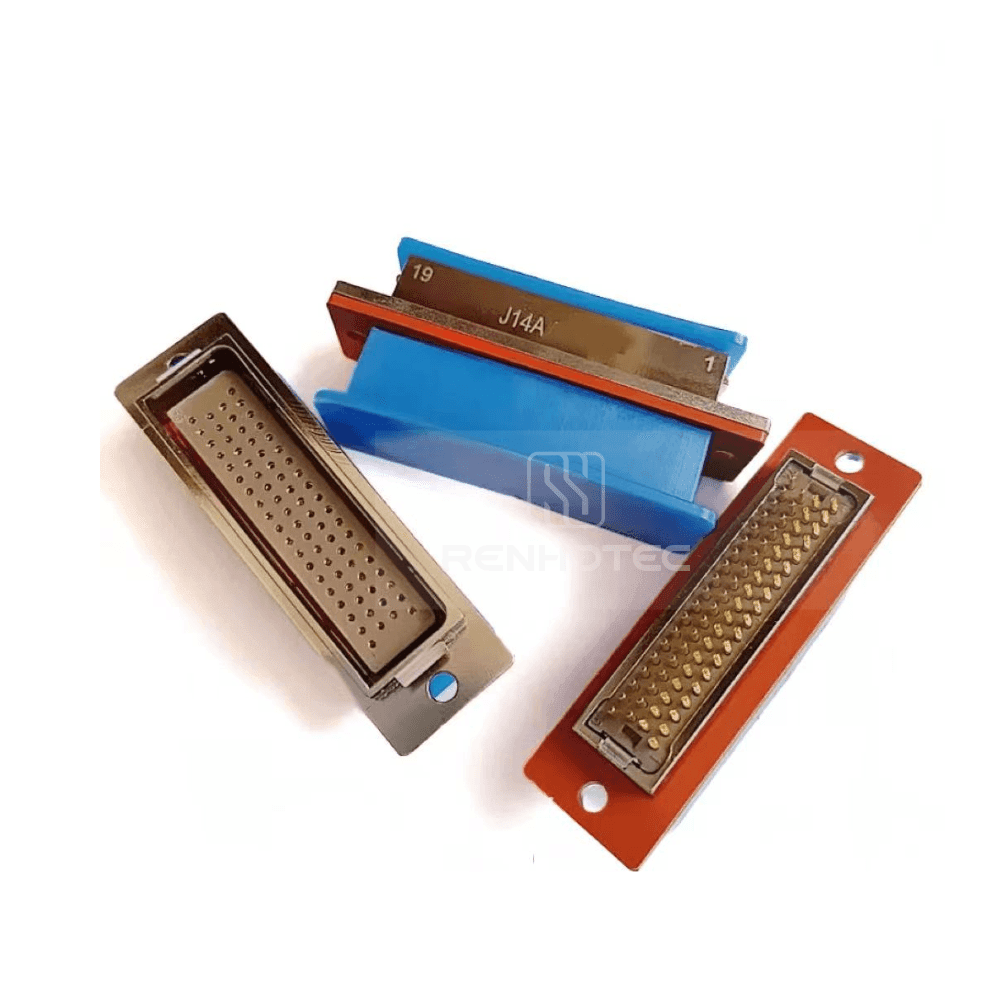

J14A Metal Shell 74pin Micro-D MIL-Spec Panel Mount Female Socket J14A74ZK2B

J14A Metal Shell 74pin Micro-D MIL-Spec Panel Mount Female Socket J14A74ZK2B

Part NO.: J14A-74ZK2B Category: J14

Get A Quotation

Attributes

Product Type

Connector Type	Socket
Orientation	Straight
Mounting Type	Panel Mount
Mounting Feature	Flange
Color	Primary Color
Connector Type	Socket	Orientation	Straight
Mounting Type	Panel Mount	Mounting Feature	Flange
Color	Primary Color

Contact Type

Contact Type	Female
Number of Cores	74
Number of Interface Rows	4
Contact Termination	PCB Mount
Housing Material	Aluminum Alloy
Housing Plating	Nickel-plated
Contact size	0.8
Contact Type	Female	Number of Cores	74
Number of Interface Rows	4	Contact Termination	PCB Mount
Housing Material	Aluminum Alloy	Housing Plating	Nickel-plated
Contact size	0.8

Contact Plating	Gold-plated
Contact Plating	Gold-plated

Electrical Characteristics

Rated Current	3A
Withstand Dielectric Voltage	800V
Contact Resistance	≤ 10MΩ
Insulation Resistance	≥ 2000MΩ
Rated Current	3A	Withstand Dielectric Voltage	800V
Contact Resistance	≤ 10MΩ	Insulation Resistance	≥ 2000MΩ

Environmental Characteristics

Operating Temperature	-55℃~+125℃
Operating Temperature	-55℃~+125℃

Connector Type	Socket
Orientation	Straight
Contact Type	Female
Number of Cores	74
Number of Interface Rows	4
Mounting Type	Panel Mount
Mounting Feature	Flange
Contact Termination	PCB Mount
Color	Primary Color
Housing Material	Aluminum Alloy
Housing Plating	Nickel-plated
Contact Plating	Gold-plated
Contact size	0.8
Rated Current	3A
Withstand Dielectric Voltage	800V
Contact Resistance	≤ 10MΩ
Insulation Resistance	≥ 2000MΩ
Operating Temperature	-55℃~+125℃
