Product Type
Gender | |||
---|---|---|---|
Orientation | |||
Number of Positions | |||
Contact Quantity | 10Pin Power (16#:15A)+9Pin Signal (22#:3A) |
||
Contact Material | Copper, Copper Alloy |
||
Contact Finish | Gold Plating, Silver Plating |
||
Contact Termination | Solder |
||
Mounting Type | Panel Mount |
||
Shell Material | PBT |
||
Gender | Orientation | ||
Number of Positions | Contact Quantity | 10Pin Power (16#:15A)+9Pin Signal (22#:3A) |
|
Contact Material | Copper, Copper Alloy |
Contact Finish | Gold Plating, Silver Plating |
Contact Termination | Solder |
Mounting Type | Panel Mount |
Shell Material | PBT |
Electrical
Rated Current | |||
---|---|---|---|
Contact Resistance | ≤1.0MΩ |
||
Insulation Resistance | |||
Withstand Voltage | 1500V |
||
Rated Current | Contact Resistance | ≤1.0MΩ |
|
Insulation Resistance | Withstand Voltage | 1500V |
Mechanical
Mating Cycles | ≥1000 |
---|---|
Mating Cycles | ≥1000 |
Environmental
Operating Temperature | -55℃~+125℃ |
---|---|
Operating Temperature | -55℃~+125℃ |
Gender | |
---|---|
Orientation | |
Number of Positions | |
Contact Quantity | 10Pin Power (16#:15A)+9Pin Signal (22#:3A) |
Rated Current | |
Contact Material | Copper, Copper Alloy |
Contact Finish | Gold Plating, Silver Plating |
Contact Resistance | ≤1.0MΩ |
Contact Termination | Solder |
Insulation Resistance | |
Mating Cycles | ≥1000 |
Mounting Type | Panel Mount |
Shell Material | PBT |
Withstand Voltage | 1500V |
Operating Temperature | -55℃~+125℃ |

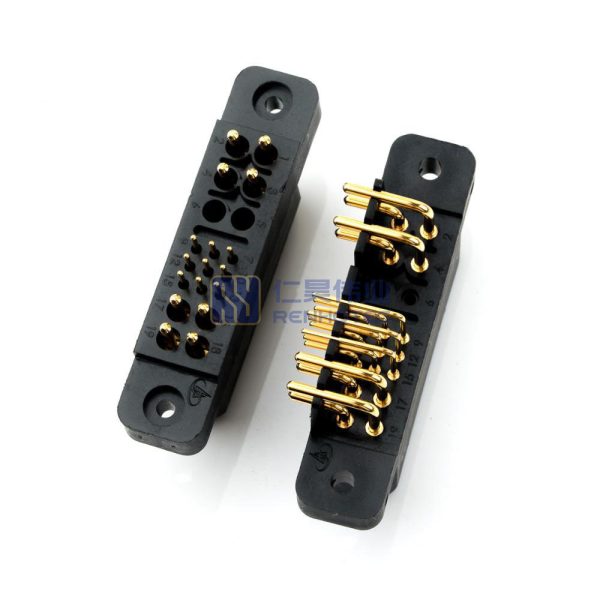

Drawer Connector is modular power interconnects for designers of power systems and electrical hardware. Drawer Connectors feature a modular tooling platform that provides a wide variety of possible configurations. A single housing can have up to 10 modules. These connectors also have the flexibility to use one of five different contact types in each module. This flexibility helps designers find an ideal fit rather than using housings that are not a match.
