Product Type
| Connector Type | |||
|---|---|---|---|
| Number of Positions | |||
| Orientation | |||
| Mounting Type | Cable Mount |
||
| Shell Material | PA66 |
||
| Color | Black |
||
| Wire Range | Power: 10mm², Signal: 20AWG |
||
| Certificate | CE |
||
| Connector Type | Number of Positions | ||
| Orientation | Mounting Type | Cable Mount |
|
| Shell Material | PA66 |
Color | Black |
| Wire Range | Power: 10mm², Signal: 20AWG |
Certificate | CE |
Mechanical
| Mating Cycles | 500~3000 Times |
|---|---|
| Mating Cycles | 500~3000 Times |
Environmental
| Ingress Protection | IP67 (Mated) |
||
|---|---|---|---|
| Salt Spray Resistance | 144H (Mating State) |
||
| Operating Temperature | -40℃~125℃ |
||
| Ingress Protection | IP67 (Mated) |
Salt Spray Resistance | 144H (Mating State) |
| Operating Temperature | -40℃~125℃ |
| Connector Type | |
|---|---|
| Number of Positions | |
| Orientation | |
| Rated Current | |
| Rated Voltage | 1000V |
| Mounting Type | Cable Mount |
| Shell Material | PA66 |
| Color | Black |
| Mating Cycles | 500~3000 Times |
| Ingress Protection | IP67 (Mated) |
| Salt Spray Resistance | 144H (Mating State) |
| Operating Temperature | -40℃~125℃ |
| Wire Range | Power: 10mm², Signal: 20AWG |
| Certificate | CE |
The hybrid contact arrangement with different contacts allows different currents within one connector. The robust design allows the usage of the product in harsh environments.

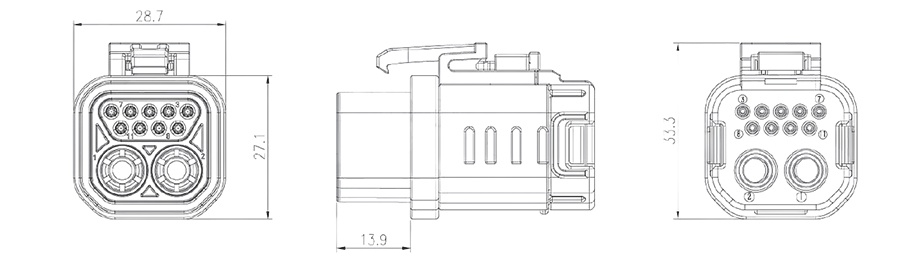

Hybrid Connector Drawing

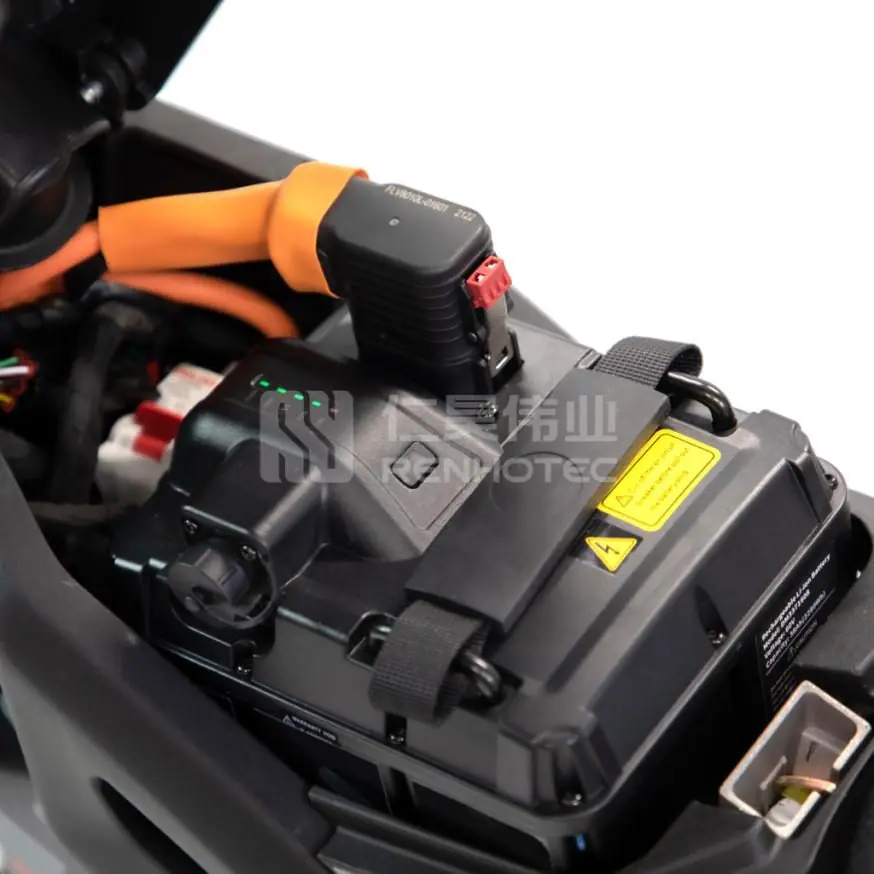

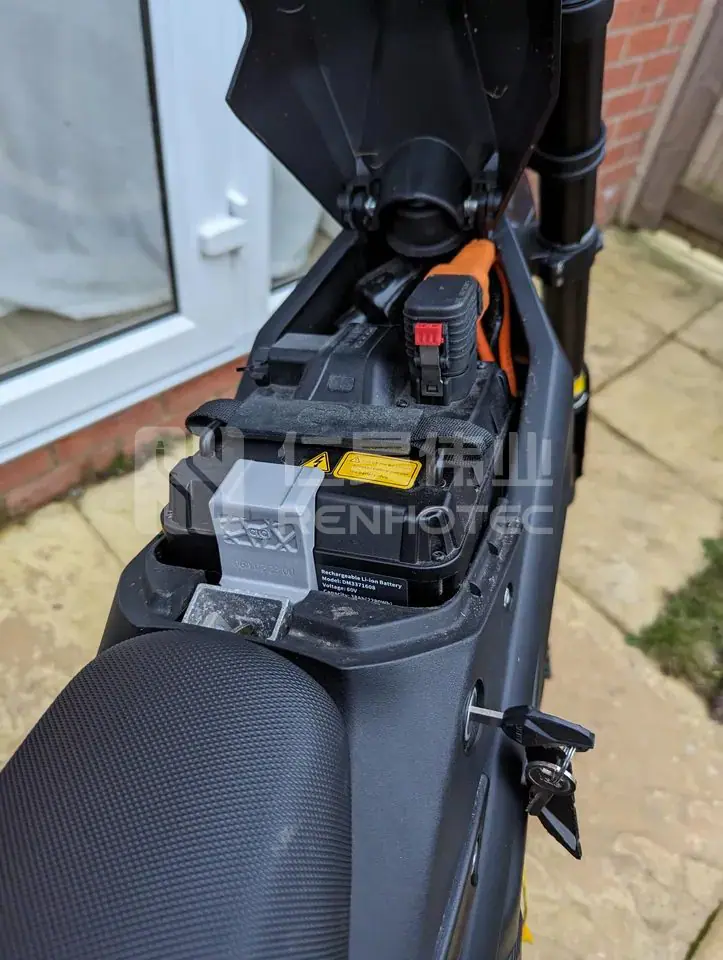

Application
The Product is vehicle connector ,which is used for the connection between electric vehicle or electric motocy-cle parts.
