J30J High-Low Current Mixed Hybrid Connector, Solder-style Plug, 2 Pin to 37+2 Pin

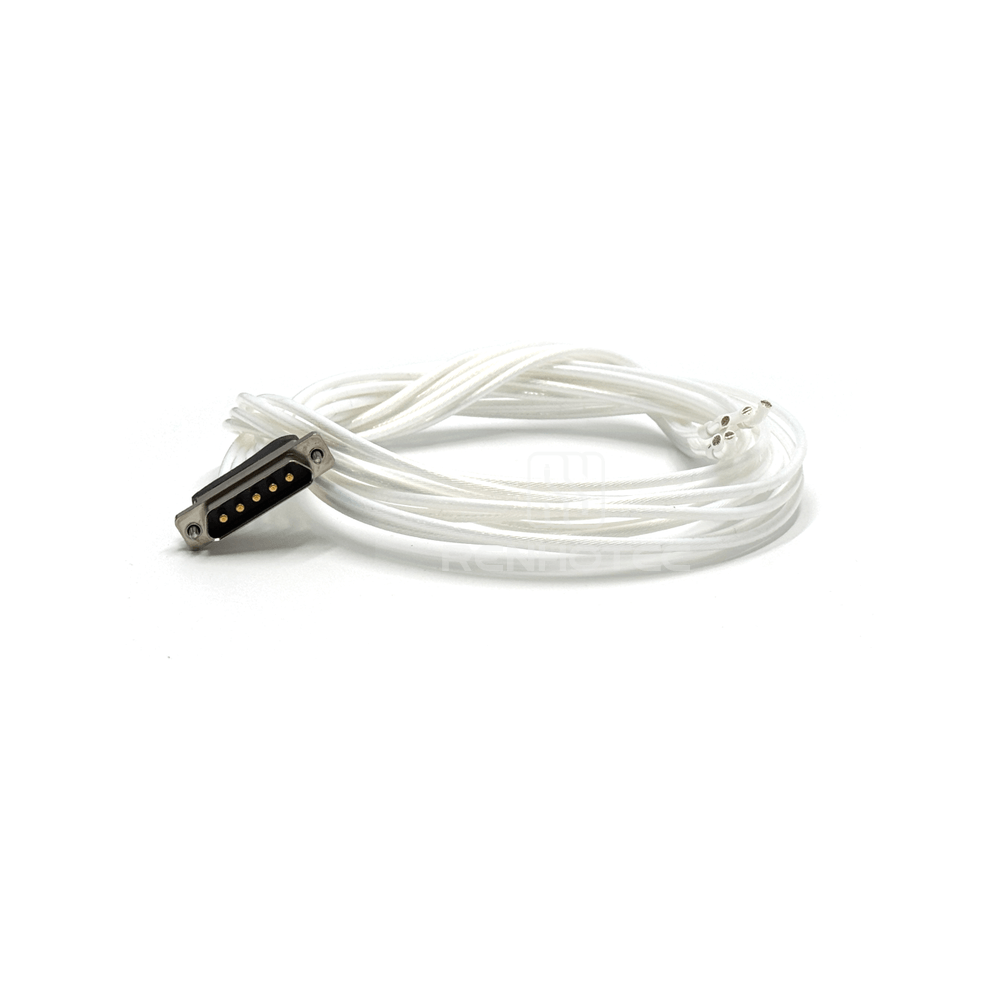

J30J High-Low Current Mixed Hybrid Connector, Solder-style Plug, 2 Pin to 37+2 Pin - Image 2

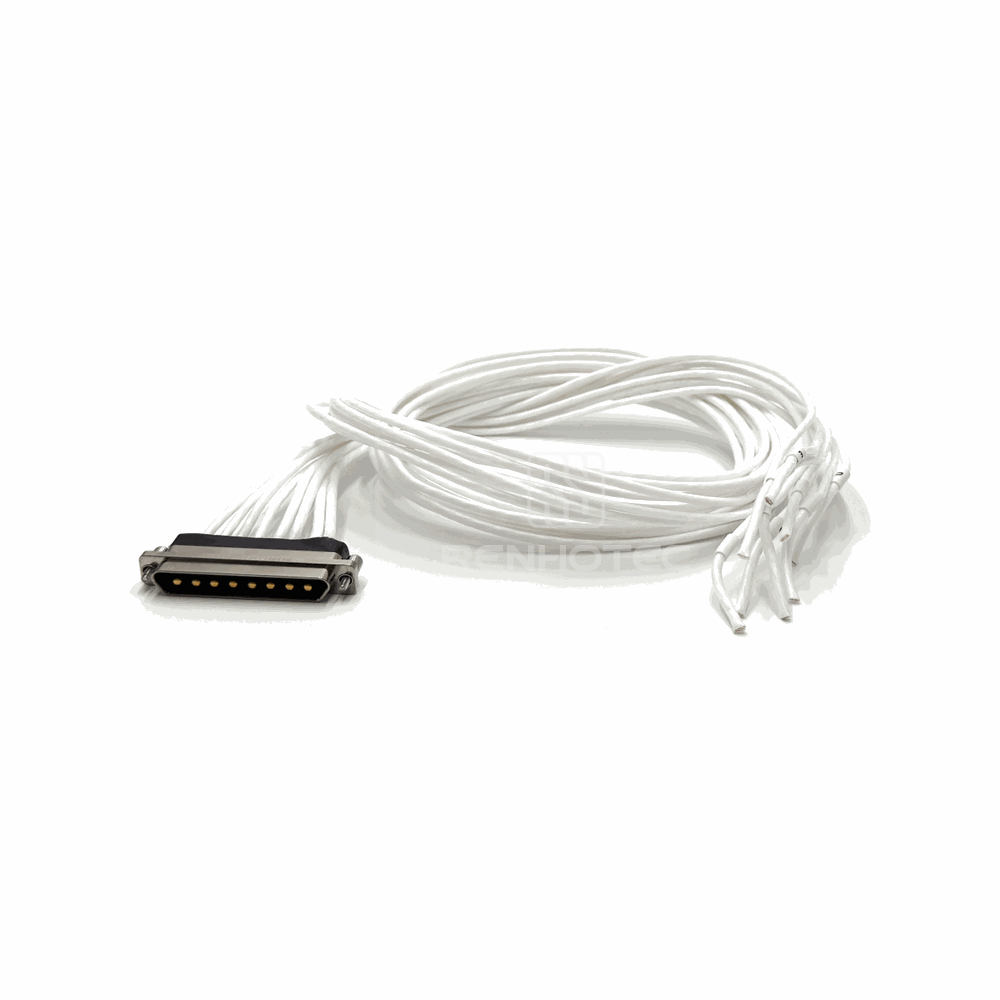

J30J High-Low Current Mixed Hybrid Connector, Solder-style Plug, 2 Pin to 37+2 Pin - Image 3

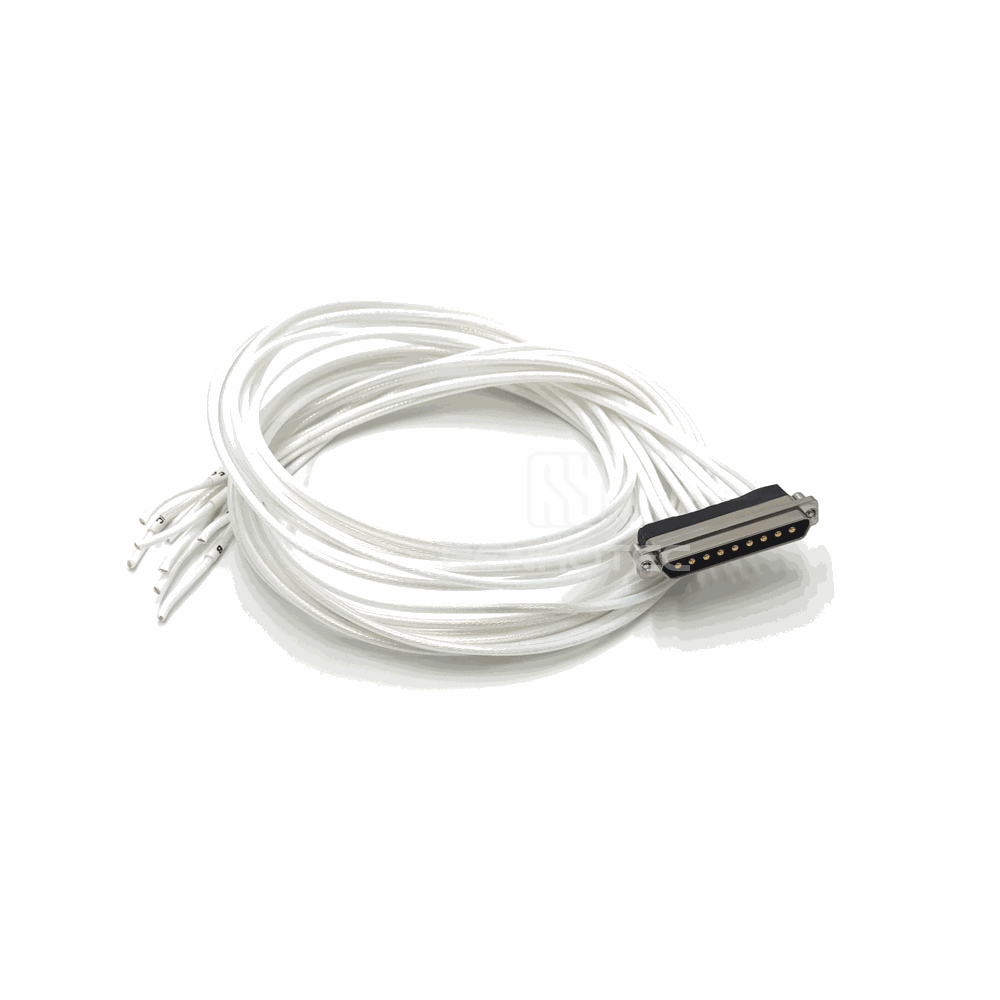

J30J High-Low Current Mixed Hybrid Connector, Solder-style Plug, 2 Pin to 37+2 Pin - Image 4

J30J High-Low Current Mixed Hybrid Connector, Solder-style Plug, 2 Pin to 37+2 Pin

Part NO.: J30J-XX-P-XX-X-S-XXX-S00000 Category:
  • Micro-D Connectors
  • Metal Shell
  • 19 Pin Count Options
  • Withstands 20G Vibration and 75G Shock
Get A Quotation

Building upon the standard J30J series, the J30J mixed current series introduces a mixed current structural design, enabling the connector to simultaneously handle high-power transmission and low-current control requirements within a compact footprint. The following figure uses the J30J-27P02 as an example for detailed explanation.

J30J 27P02 contact arrangement with 20A high-current contacts and 3A low-current contacts



  • High-current contacts: Rated at 20A, accommodating 2.0 mm² or 3.0 mm² wire sizes.

  • Low-current contacts: Rated at 3A, accommodating 0.1–0.15 mm² wire sizes.

These products are suitable for various applications, including industrial, medical, and rail transit sectors. Similar to the standard J30J series, this series offers multiple options for locking hardware, shell modifications, backshells, and wire gauges. Please specify these requirements to our sales engineers when submitting your inquiry.

The J30J mixed current series offers a total of 19 pinout options, including 9 all-high-current configurations and 10 mixed current configurations.

The high-current contacts are rated at 20A, and the low-current contacts are rated at 3A.

Image showing J30J Mixed Current (Hybrid) Series 19 different types of contact layout.

Assembly Notes: Generally, the termination types and PCB thickness codes for both high and low-current contacts must match. However, for special applications, crimp and solder terminations can be mixed within the same connector.

J30J mixed current contact termination and PCB options.
J30J High-Low Current Mixed Hybrid Connector, Crimp-style Socket
Plug Part No. Dimension(mm) Receptacle Part No. Dimension(mm)
A B C D A B C D
J30J02P020S000C00000 23.2 18.8 12.9 14.5 J30J02P020P000C00000 23.2 18.8 14.4 14.5
J30J03P030S000C00000 27.3 22.9 17 18.6 J30J03P030P000C00000 27.3 22.9 18.5 18.6
J30J04P040S000C00000 31.4 27 21.1 22.7 J30J04P040P000C00000 31.4 27 22.6 22.7
J30J05P050S000C00000 36.3 30.9 25 26.6 J30J05P050P000C00000 36.3 30.9 26.5 26.6
J30J06P060S000C00000 39.6 35.2 29.3 30.9 J30J06P060P000C00000 39.6 35.2 30.8 30.9
J30J07P070S000C00000 43.7 39.3 33.4 35 J30J07P070P000C00000 43.7 39.3 34.9 35
J30J08P080S000C00000 47.8 43.4 37.5 39.1 J30J08P080P000C00000 47.8 43.4 39 39.1
J30J09P090S000C00000 51.9 47.5 41.6 43.2 J30J09P090P000C00000 51.9 47.5 43.1 43.2
J30J10P100S000C00000 56 51.6 45.7 47.3 J30J10P100P000C00000 56 51.6 47.2 47.3
J30J09P02JSC00C00000 29.7 24.5 18.6 20.2 J30J09P02KPC00C00000 29.7 24.5 20.1 20.2
J30J11P04JSC00C00000 36.3 30.9 25 26.6 J30J11P04KPC00C00000 36.3 30.9 26.5 26.6
J30J12P05JSC00C00000 39.6 35.2 29.3 30.9 J30J12P05KPC00C00000 39.6 35.2 30.8 30.9
J30J13P06JSC00C00000 43.7 39.3 33.4 35 J30J13P06KPC00C00000 43.7 39.3 34.9 35
J30J16P03JSC00C00000 34.8 29.3 23.4 25 J30J16P03KPC00C00000 34.8 29.3 24.9 25
J30J21P02JSC00C00000 36.3 30.9 25 26.6 J30J21P02KPC00C00000 36.3 30.9 26.5 26.6
J30J23P06JSC00C00000 47.8 43.4 37.5 39.1 J30J23P06KPC00C00000 47.8 43.4 39 39.1
J30J25P02JSC00C00000 36.3 30.9 25 26.6 J30J25P02KPC00C00000 36.3 30.9 26.5 26.6
J30J27P02JSC00C00000 36.3 30.9 25 26.6 J30J27P02KPC00C00000 36.3 30.9 26.5 26.6
J30J39P02JSC00C00000 42.8 37.3 31.4 33 J30J39P02KPC00C00000 42.8 37.3 32.9 33

Product Type

Connector Type

Orientation

Mounting Type

Free Hanging
Wire Gauge

0.1-0.15 mm2 (Low Current Contacts), 2.0 / 3.1 mm2 (High Current Contacts)
Color

Primary Color
Connector Type

Orientation

Mounting Type

Free Hanging

 Wire Gauge

0.1-0.15 mm2 (Low Current Contacts), 2.0 / 3.1 mm2 (High Current Contacts)
Color

Primary Color

Contact Type

Contact Type

Male
Contact Termination

Soldering
Housing Material

Aluminum Alloy
Housing Plating

Nickel-plated
Contacts Plating

Gold-plated
Contact Type

Male

 Contact Termination

Soldering
Housing Material

Aluminum Alloy

 Housing Plating

Nickel-plated
Contacts Plating

Gold-plated

Electrical Characteristics

Rated Current

,

Withstand Dielectric Voltage

800V
Contact Resistance

??10M??
Insulation Resistance

Rated Current

,

Withstand Dielectric Voltage

800V
Contact Resistance

??10M??

 Insulation Resistance

Environmental Characteristics

Operating Temperature

-55?桫+125??
Operating Temperature

-55?桫+125??

Mechanical Characteristics

Mating Cycles

500
Mating Cycles

500
Connector Type

Orientation

Contact Type

Male
Mounting Type

Free Hanging
Contact Termination

Soldering
Wire Gauge

0.1-0.15 mm2 (Low Current Contacts), 2.0 / 3.1 mm2 (High Current Contacts)
Color

Primary Color
Housing Material

Aluminum Alloy
Housing Plating

Nickel-plated
Contacts Plating

Gold-plated
Rated Current

,

Withstand Dielectric Voltage

800V
Contact Resistance

??10M??
Insulation Resistance

Operating Temperature

-55?桫+125??
Mating Cycles

500
