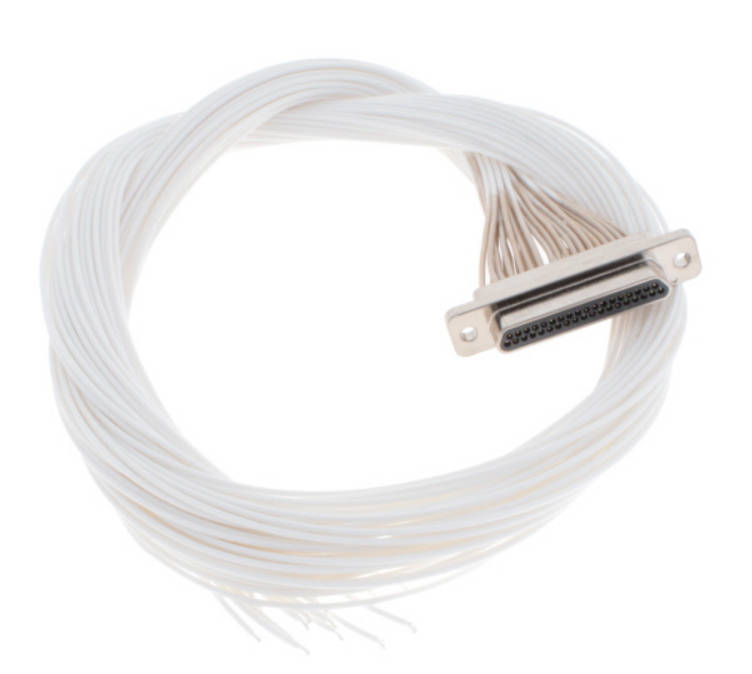

J30J (MIL-DTL-83513 / MDM) Metal Shell 37pin Pre-Wired Micro-D Male Connector with 30cm Cable J30J-37TJL-30

  • Industry Standard Micro-D Connector (1.27mm Pitch)
  • Metal shell, crimp-terminated
  • 9-144 pin configurations
  • Twist Pin contacts
  • 0.1-0.15 mm² wire compatibility

Alternative Part Number

ManufacturerPart NumberImage
GlenairM83513/03-F01NM8351303 F01N
Get A Quotation

J30J Micro-D Rectangular Connector is a small size electrical connector. This product complys with GJB2446( general specification for micro-miniature polarized shell rectangular electrical connectors), which is equivalent MIL-DTL-83513. With the small install space, light weight, reliable connect, excellent electromagnetic scree, good shock resistance, etc., this series is the definitive solution for applications where space-saving design, weight reduction, and superior signal integrity are critical.

A micro-d rectangular connector usually consists of two parts: a plug and a socket.Both plugs and sockets include many small and precise pins or pins that match the holes on the corresponding sockets or plugs to achieve electrical connection.

  • Cross-Reference: Interchangeable with US MIL-DTL-83513 (MDM) series.

  • Contact Arrangements: Available in 9, 15, 21, 25, 31, 37, 51, 66, 74, 100, and 144 positions.

  • Wire Accommodation: Accepts 0.1 to 0.15 mm2 (approx. 26-28 AWG) conductors.

  • Contact Design: Features high-density twist-pin contacts for superior shock and vibration resistance.

  • Standards Compliance: Qualified to GJB2446 (General Specification for Polarized Shell, Micro-Miniature Rectangular Electrical Connectors) and equivalent to MIL-DTL-83513.

  • Hardware Options: A wide range of jackscrews and locking hardware is available upon request.

Aerospace

In aircraft and spacecraft electrical systems, J30J connectors link critical avionics, including sensors, control units, and power distribution systems.

harsh environment

Harsh Environment

Engineered for equipment operating in extreme cold, high humidity, arid, and dusty conditions, ensuring uninterrupted power and signal integrity.

Industry

Widely used in mechatronic systems, J30J connectors provide dependable electrical-to-mechanical interconnects to enhance overall equipment performance.

Medical

Ideal for medical devices such as patient monitors, diagnostic systems, and surgical instruments, delivering stable and reliable electrical connections.

Product Type

Color

Primary Color

Connector Type

Mounting Type

Free Hanging

Wire Gauge

0.1mm²~0.15mm²

Wire Length

30cm

Color

Primary Color

Connector Type

Mounting Type

Free Hanging

Wire Gauge

0.1mm²~0.15mm²

Wire Length

30cm

Electrical Characteristics

Contact Resistance

≤ 10MΩ

Insulation Resistance

Rated Current

Withstand Dielectric Voltage

800V

Contact Resistance

≤ 10MΩ

Insulation Resistance

Rated Current

Withstand Dielectric Voltage

800V

Contact Type

Contact Spacing

1.27mm

Contact Termination

Crimping

Contact Type

Male

Contacts Plating

Gold-plated

Housing Material

Aluminum Alloy

Housing Plating

Nickel-plated

Number of Cores

37

Number of Interface Rows

2

Contact Spacing

1.27mm

Contact Termination

Crimping

Contact Type

Male

Contacts Plating

Gold-plated

Housing Material

Aluminum Alloy

Housing Plating

Nickel-plated

Number of Cores

37

Number of Interface Rows

2

Environmental Characteristics

Operating Temperature

-55℃~125℃

Operating Temperature

-55℃~125℃

Color

Primary Color

Connector Type

Contact Resistance

≤ 10MΩ

Contact Spacing

1.27mm

Contact Termination

Crimping

Contact Type

Male

Contacts Plating

Gold-plated

Housing Material

Aluminum Alloy

Housing Plating

Nickel-plated

Insulation Resistance

Mounting Type

Free Hanging

Number of Cores

37

Number of Interface Rows

2

Operating Temperature

-55℃~125℃

Rated Current

Wire Gauge

0.1mm²~0.15mm²

Wire Length

30cm

Withstand Dielectric Voltage

800V

J30J Connector CatalogDownload
J30J-37-TJL-30 Micro-D Connector Specs & DatasheetDownload



J30J X – X – TJ/ZK X X – X X
① ② ③ ④ ⑤ ⑥ ⑦ ⑧



①Main code:
J30J series
②Variations:
No designator-basic type,
C-The outer material is tin phosphor copper and plating nickel,
D-Mounting hole changed for M2-6H,
M-Sealed with glue
③Number of contacts:
9, 15, 21, 25, 31, 37, 51, 66, 74, 100
④Connector and contact type:
TJ- plug with pins,
ZK- Receptacle with socket,
TJ/ZK is fixation combination
⑤Type of contact terminal:
Null-Crimp,
S-Solder,
N-Straight inserting PCB,
W-Right angle inserting PCB
⑥Type of locking subassemblies:
Check More details in J30J Locking Subassemblies
⑦Finishing:
Null- Shell plated with nickel,
G- Shell plated with cadmium
⑧Improved type:
A-Shell with shielding braid cable clipper,
C-Suitable for contact and wire is right angle,
D-There is spinning-resistance groove in the interface terminal of the receptacle shell flange,
AD-The combination of variation A and D,
J-The grid of PCB is 1.27×2.54 (row*line),
Q-The shell flange is widened.
