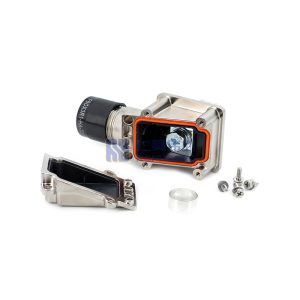

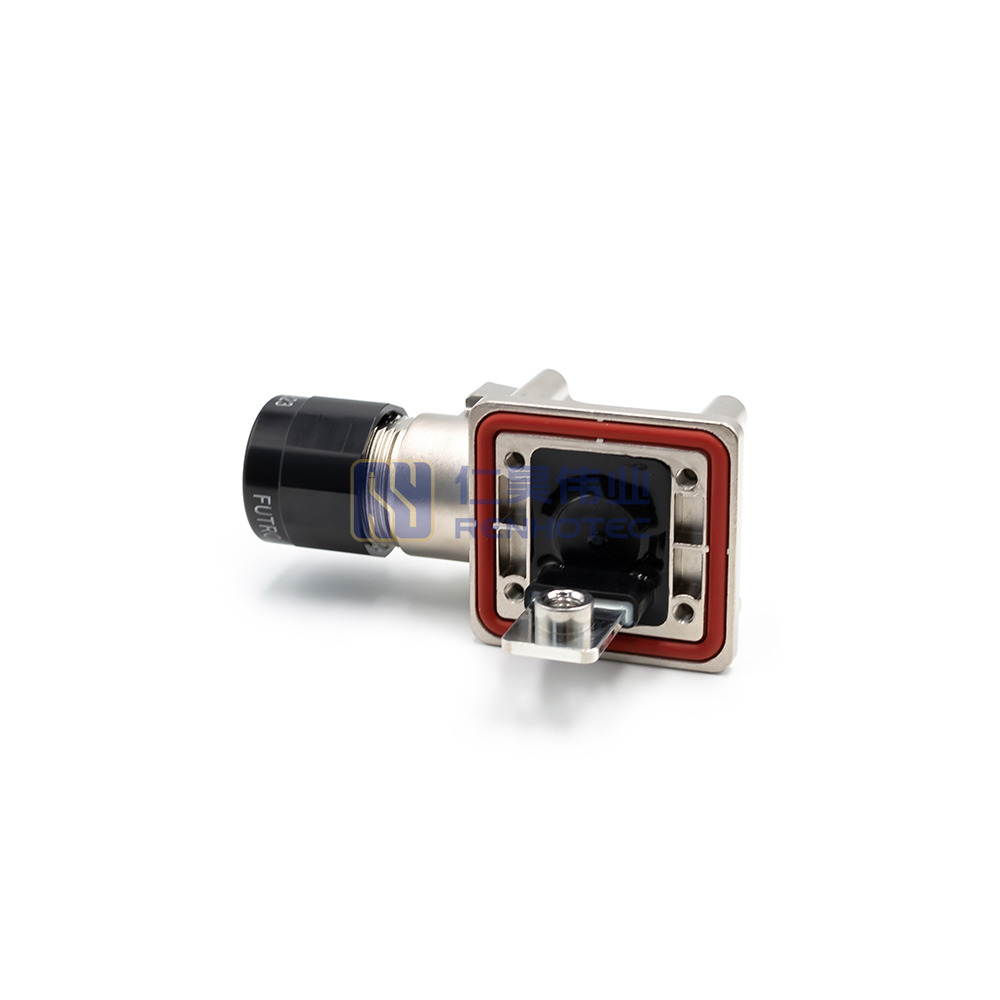

Product Type
| Inside Thread | M10 |
||
|---|---|---|---|
| Termination Method | Screw |
||
| Mounting Type | Panel Mount |
||
| Wire Gauge | 70m㎡ |
||
| Shell Material | Aluminum Alloy Nickel Plating |
||
| Contact Material | Copper Alloy |
||
| Contact Finish | Tin Plating |
||
| Shielding | Shield |
||
| Color | Black |
||
| Features | Sealed without the top cover assy |
||
| Inside Thread | M10 |
Termination Method | Screw |
| Mounting Type | Panel Mount |
Wire Gauge | 70m㎡ |
| Shell Material | Aluminum Alloy Nickel Plating |
Contact Material | Copper Alloy |
| Contact Finish | Tin Plating |
Shielding | Shield |
| Color | Black |
Features | Sealed without the top cover assy |
Electrical
| Rated Voltage | 1000V |
||
|---|---|---|---|
| Rated Current | |||
| Insulation Resistance | |||
| Test Voltage | 3000VDC |
||
| Rated Voltage | 1000V |
Rated Current | |
| Insulation Resistance | Test Voltage | 3000VDC |
Environmental
| Ingress Protection | IP67 (Mated) |
||
|---|---|---|---|
| Operating Temperature | -40℃~125℃ |
||
| Flammability | UL94 V-0 |
||
| Salt Spray Resistance | 48H（SST) |
||
| Ingress Protection | IP67 (Mated) |
Operating Temperature | -40℃~125℃ |
| Flammability | UL94 V-0 |
Salt Spray Resistance | 48H（SST) |
| Inside Thread | M10 |
|---|---|
| Rated Voltage | 1000V |
| Rated Current | |
| Insulation Resistance | |
| Test Voltage | 3000VDC |
| Termination Method | Screw |
| Mounting Type | Panel Mount |
| Wire Gauge | 70m㎡ |
| Shell Material | Aluminum Alloy Nickel Plating |
| Contact Material | Copper Alloy |
| Contact Finish | Tin Plating |
| Shielding | Shield |
| Ingress Protection | IP67 (Mated) |
| Color | Black |
| Features | Sealed without the top cover assy |
| Operating Temperature | -40℃~125℃ |
| Flammability | UL94 V-0 |
| Salt Spray Resistance | 48H（SST) |
It is mainly used for the high voltage current transmission on electric vehicle by line method, such as battery box and PDU connection;It is also suitable for electric control and other connections
| Part NO | Body Style | Inside Thread | Termination Method | Rated Voltage | Rated Current | Test Voltage | Shell Material | Contact Material | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|
| FBOX01-CN-70S-M | / | M10 | Screw | 1000V | 300A | 3000V DC | Aluminum Alloy Nickel Plating | Copper Alloy | Tin Plating |
| FB0X3R1-HA-70S-M | |||||||||
| FB0X3L1-CA-70S-M | |||||||||
| / | Square | M8 | 1500V | 18KV DC | Plastic | ||||
| / | |||||||||
| FPB0X5510-CA-T8 | Busbar | 500A | 3000V DC | ||||||
| FPB0X5510-HA-T8 | |||||||||
| FPB0X12K6-CA-H6 | M6 | 200A | |||||||
| FPB0X12K6-HA-H6 |
Application Scenario
It bases on Plastic material with characteristices of easy installation, economincal cost, and good at the same time; good electrical ,mechanical and environmental performance.
