Product Type
| Connector Type | |||
|---|---|---|---|
| Rated Type | DC |
||
| Shell Material | Themoplastic |
||
| Power Phase | |||
| Contact Material | Copper Alloy |
||
| Contact Finish | Silver Plating |
||
| Mounting Type | Cable Mount |
||
| Wire Gauge | 3*16mm² + 2*4mm² + 2P(4*0.75mm² )+ 2P(2*0.75mm² ) |
||
| Connector Type | Rated Type | DC |
|
| Shell Material | Themoplastic |
Power Phase | |
| Contact Material | Copper Alloy |
Contact Finish | Silver Plating |
| Mounting Type | Cable Mount |
Wire Gauge | 3*16mm² + 2*4mm² + 2P(4*0.75mm² )+ 2P(2*0.75mm² ) |
Electrical
| Rated Current | |||
|---|---|---|---|
| Rated Voltage | 750V |
||
| Contact Resistance | 0.5MΩ MAX |
||
| Insulation Resistance | |||
| Power | 60kW |
||
| Rated Current | Rated Voltage | 750V |
|
| Contact Resistance | 0.5MΩ MAX |
Insulation Resistance | |
| Power | 60kW |
Standards and Specifications
| Charging Standards | GB/T 20234.2-2015 |
|---|---|
| Charging Standards | GB/T 20234.2-2015 |
Environmental
| Flammability | UL94 V-0 |
||
|---|---|---|---|
| Ingress Protection | IP65 |
||
| Operating Temperature | -30℃~50℃ |
||
| Flammability | UL94 V-0 |
Ingress Protection | IP65 |
| Operating Temperature | -30℃~50℃ |
| Connector Type | |
|---|---|
| Rated Type | DC |
| Rated Current | |
| Rated Voltage | 750V |
| Charging Standards | GB/T 20234.2-2015 |
| Shell Material | Themoplastic |
| Power Phase | |
| Contact Material | Copper Alloy |
| Contact Finish | Silver Plating |
| Contact Resistance | 0.5MΩ MAX |
| Flammability | UL94 V-0 |
| Ingress Protection | IP65 |
| Insulation Resistance | |
| Mounting Type | Cable Mount |
| Power | 60kW |
| Operating Temperature | -30℃~50℃ |
| Wire Gauge | 3*16mm² + 2*4mm² + 2P(4*0.75mm² )+ 2P(2*0.75mm² ) |
Renhotec is a manufacturer specializing in EV charging products. In addition to production, our company has design and r&d departments. Our main products are EV charging stations, EV cables, and EV connectors. Along with the regular products, we also offer product customization services upon request to meet the local market preferences and needs.

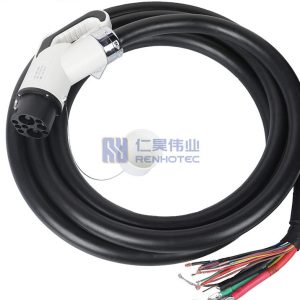

EV charging cable
Electric Vehicle Charging Cables are essential if you own an electric car. They enable you to connect your electric car to a charging point. While some public charging points come with cables already attached, most would expect you to provide your own.
However, a few key points to consider to ensure you purchase the most suitable one for your application. Renhotec offers a great selection of high-quality EV Charging cables. Our EV cables come in various current ratings, voltage ratings, cable lengths, and connector combinations. In both single-phase and three-phase.
